HEMENG COOLERS SYSTEM

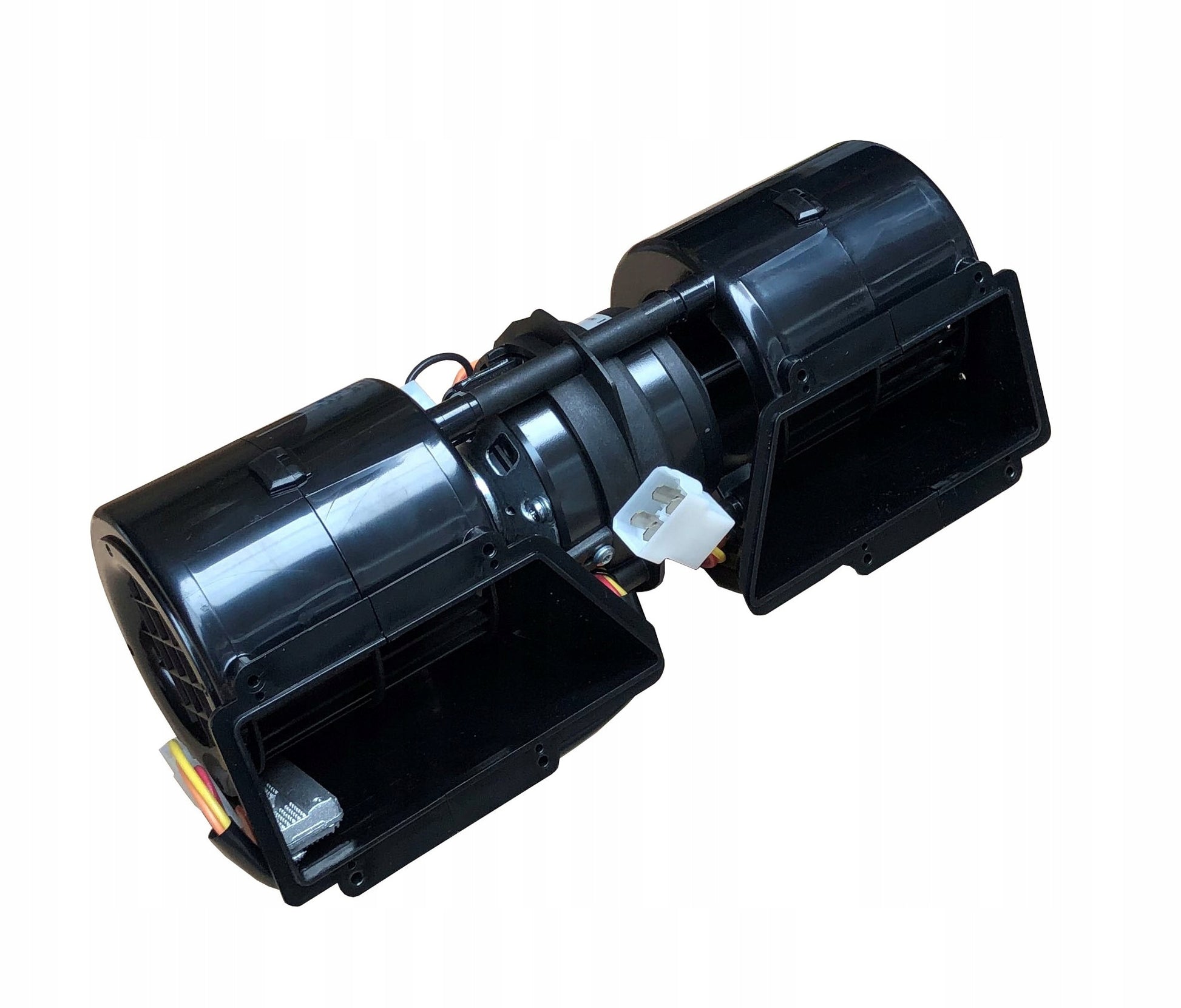

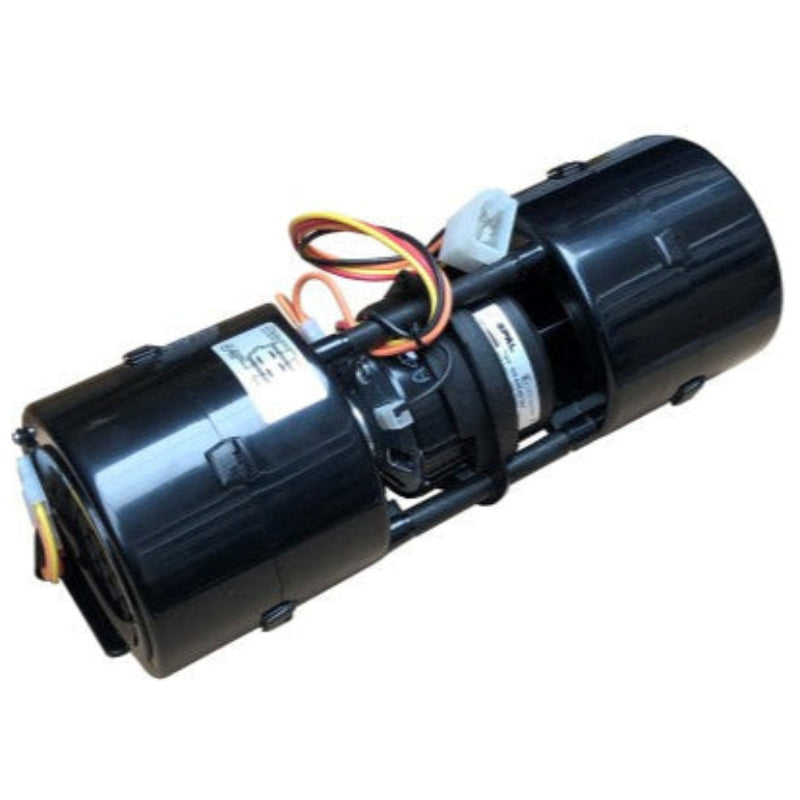

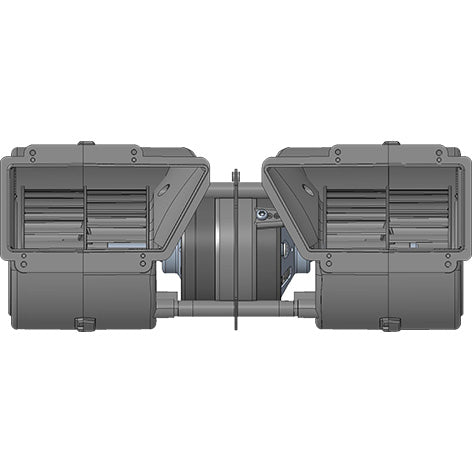

For SPAL 005-A45-02 12V Double Wheel Blower Motor Assembly, 3-Speed 14.1A
For SPAL 005-A45-02 12V Double Wheel Blower Motor Assembly, 3-Speed 14.1A
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Quantity
Couldn't load pickup availability
Performance chart
| Static pressure | Static pressure | Airflow | Current draw | Airflow | Static pressure |
|---|---|---|---|---|---|
| Pa | mm H₂0 | m³/h | A | CFM | in H₂0 |
| 0.0 | 0.0 | 617.0 | 14.3 | 363.0 | 0.0 |
| 49.0 | 5.0 | 576.0 | 13.7 | 339.0 | 0.2 |
| 99.0 | 10.0 | 531.0 | 13.1 | 313.0 | 0.4 |
| 149.0 | 15.0 | 480.0 | 12.4 | 283.0 | 0.6 |
| 199.0 | 20.0 | 434.0 | 11.7 | 255.0 | 0.8 |
| 249.0 | 25.0 | 390.0 | 11.0 | 230.0 | 1.0 |
| 297.0 | 30.0 | 333.0 | 10.2 | 196.0 | 1.2 |
| 347.0 | 35.0 | 261.0 | 9.3 | 153.0 | 1.4 |
| 402.0 | 41.0 | 174.0 | 7.9 | 102.0 | 1.6 |
| 452.0 | 46.0 | 93.0 | 6.9 | 55.0 | 1.8 |
| 497.0 | 51.0 | 20.0 | 6.5 | 12.0 | 2.0 |
| 508.0 | 52.0 | 0.0 | 6.4 | 0.0 | 2.0 |
