HEMENG COOLERS SYSTEM

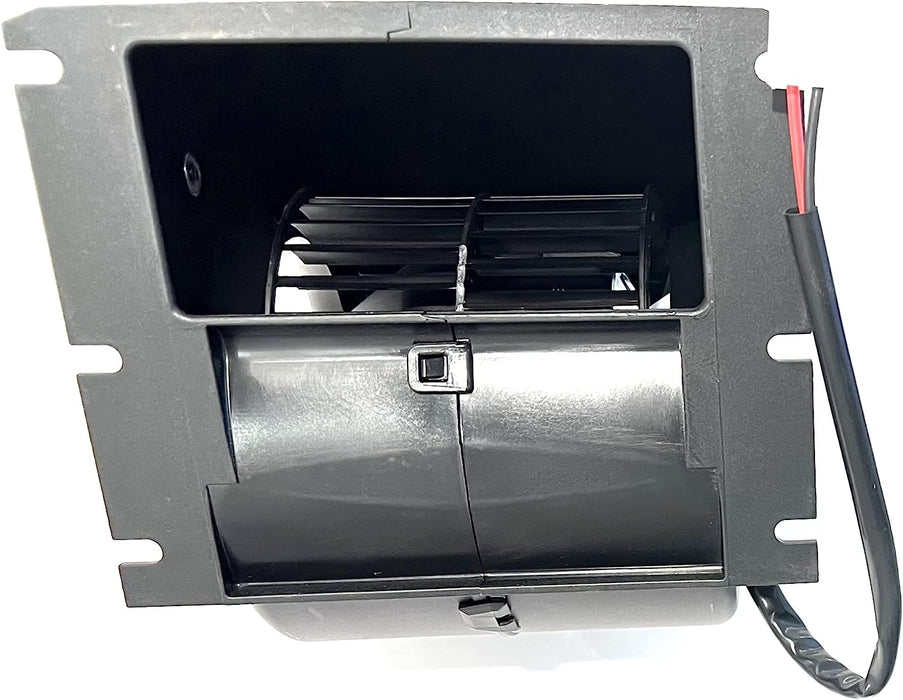

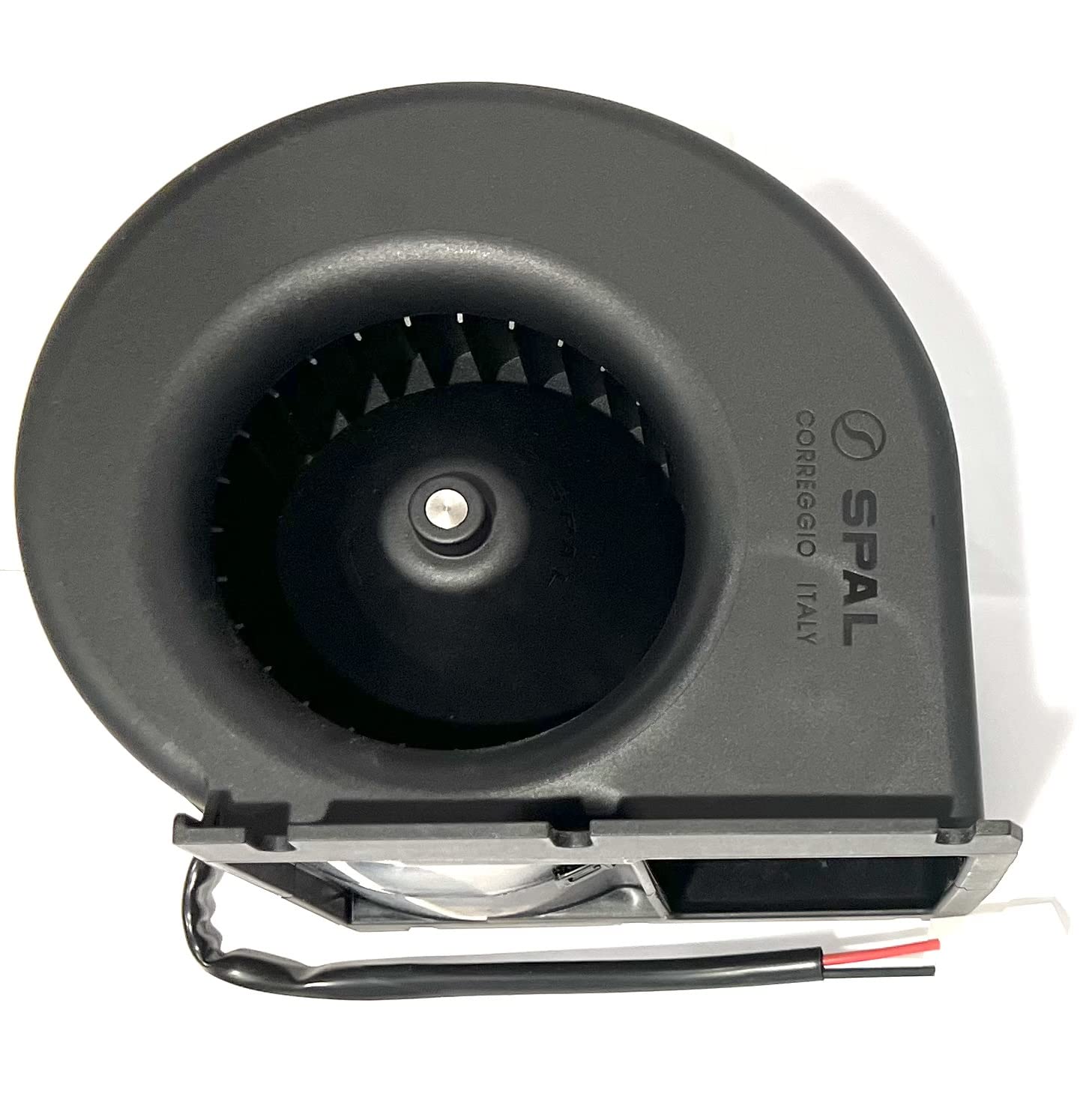

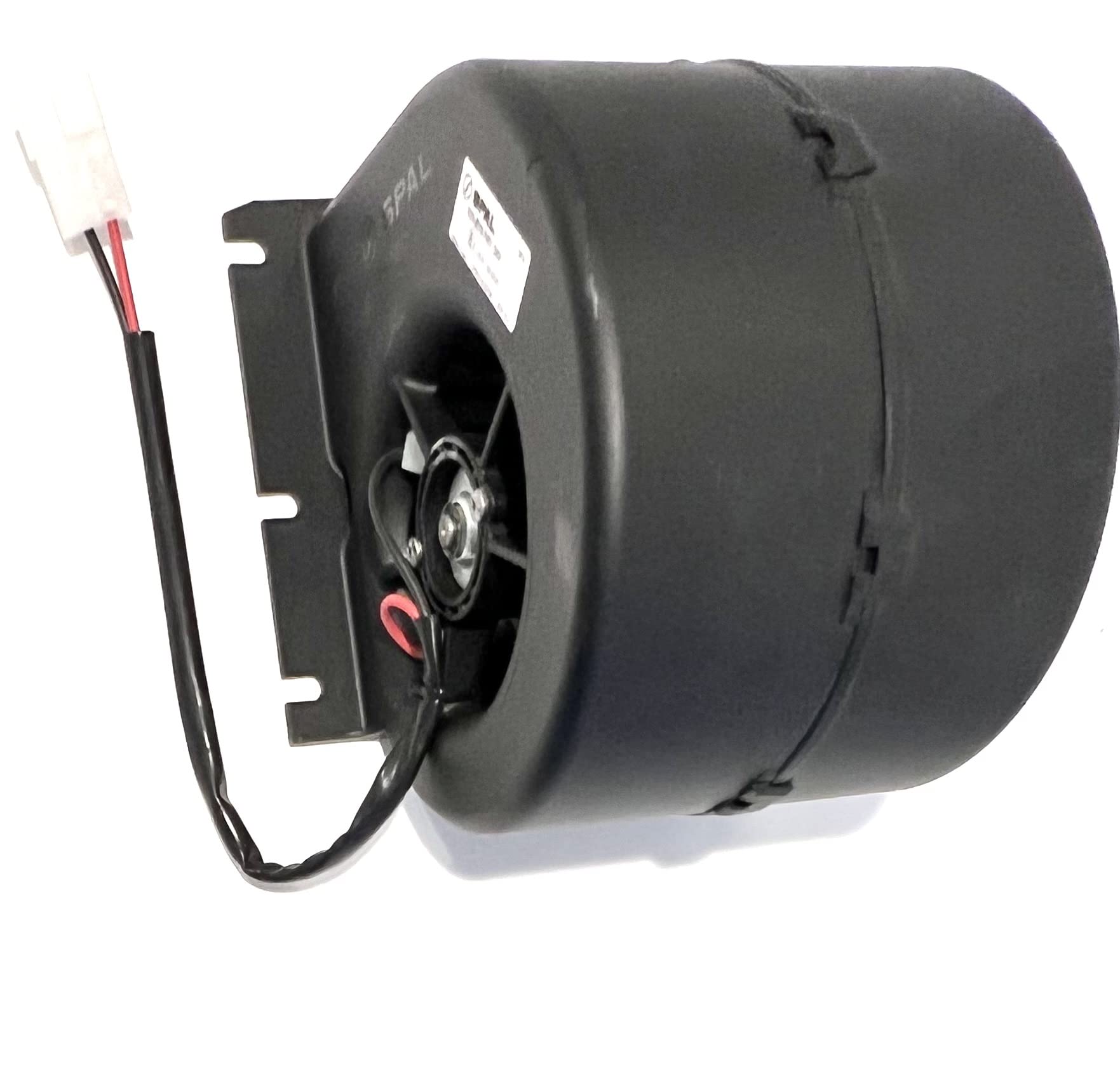

Single Wheel Blower For Spal 30003545 24 Volt 023-B70-74D 24V 580 cfm
Single Wheel Blower For Spal 30003545 24 Volt 023-B70-74D 24V 580 cfm
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Quantity
Couldn't load pickup availability
Performance chart
| Static pressure | Static pressure | Airflow | Current draw | Airflow | Static pressure |
|---|---|---|---|---|---|
| Pa | mm H₂0 | m³/h | A | CFM | in H₂0 |
| 0.0 | 0.0 | 595.2 | 9.8 | 350.0 | 0.0 |
| 48.1 | 5.0 | 567.3 | 9.4 | 334.0 | 0.2 |
| 99.8 | 10.0 | 541.4 | 9.1 | 319.0 | 0.4 |
| 148.6 | 15.0 | 519.7 | 8.8 | 306.0 | 0.6 |
| 198.3 | 20.0 | 499.3 | 8.6 | 294.0 | 0.8 |
| 247.9 | 25.0 | 478.9 | 8.4 | 282.0 | 1.0 |
| 299.2 | 31.0 | 457.0 | 8.2 | 269.0 | 1.2 |
| 351.4 | 36.0 | 431.3 | 7.9 | 254.0 | 1.4 |
| 398.8 | 41.0 | 405.5 | 7.7 | 239.0 | 1.6 |
| 449.7 | 46.0 | 372.5 | 7.3 | 219.0 | 1.8 |
| 503.0 | 51.0 | 324.8 | 6.8 | 191.0 | 2.0 |
| 546.6 | 56.0 | 304.3 | 6.7 | 179.0 | 2.2 |
| 601.8 | 61.0 | 278.1 | 6.4 | 164.0 | 2.4 |
| 652.8 | 67.0 | 243.6 | 6.0 | 143.0 | 2.6 |
| 701.9 | 72.0 | 198.0 | 5.5 | 117.0 | 2.8 |
| 755.2 | 77.0 | 152.7 | 5.1 | 90.0 | 3.0 |
| 807.2 | 82.0 | 80.0 | 4.7 | 47.0 | 3.2 |
| 855.9 | 87.0 | 22.3 | 4.5 | 13.0 | 3.4 |
| 879.0 | 90.0 | 0.0 | 4.4 | 0.0 | 3.5 |
