HEMENG COOLERS SYSTEM

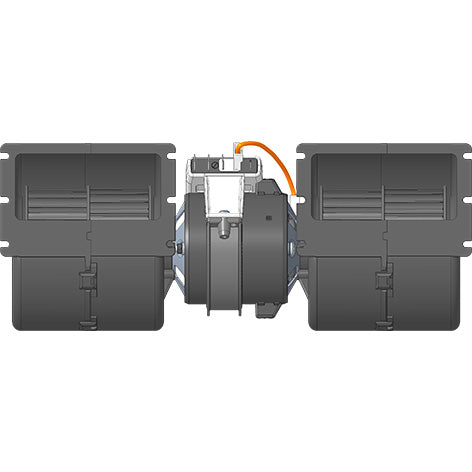

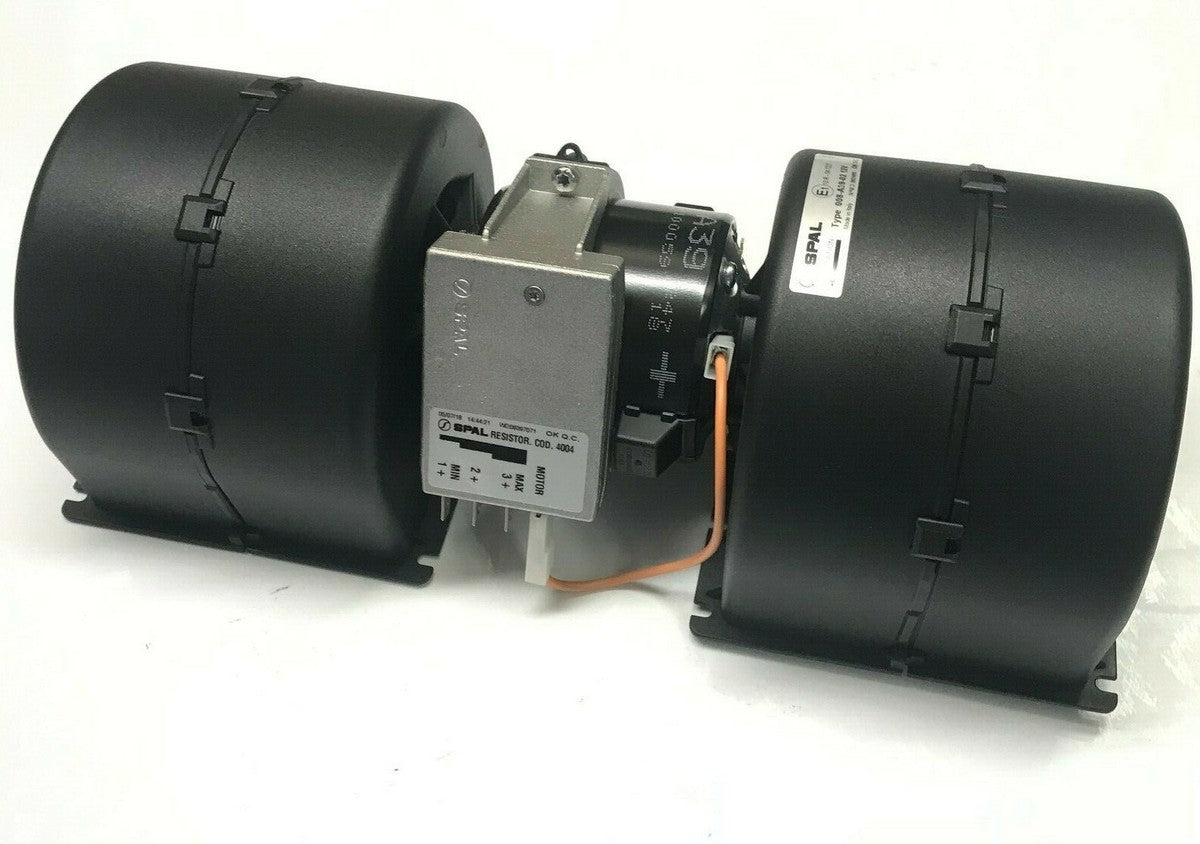

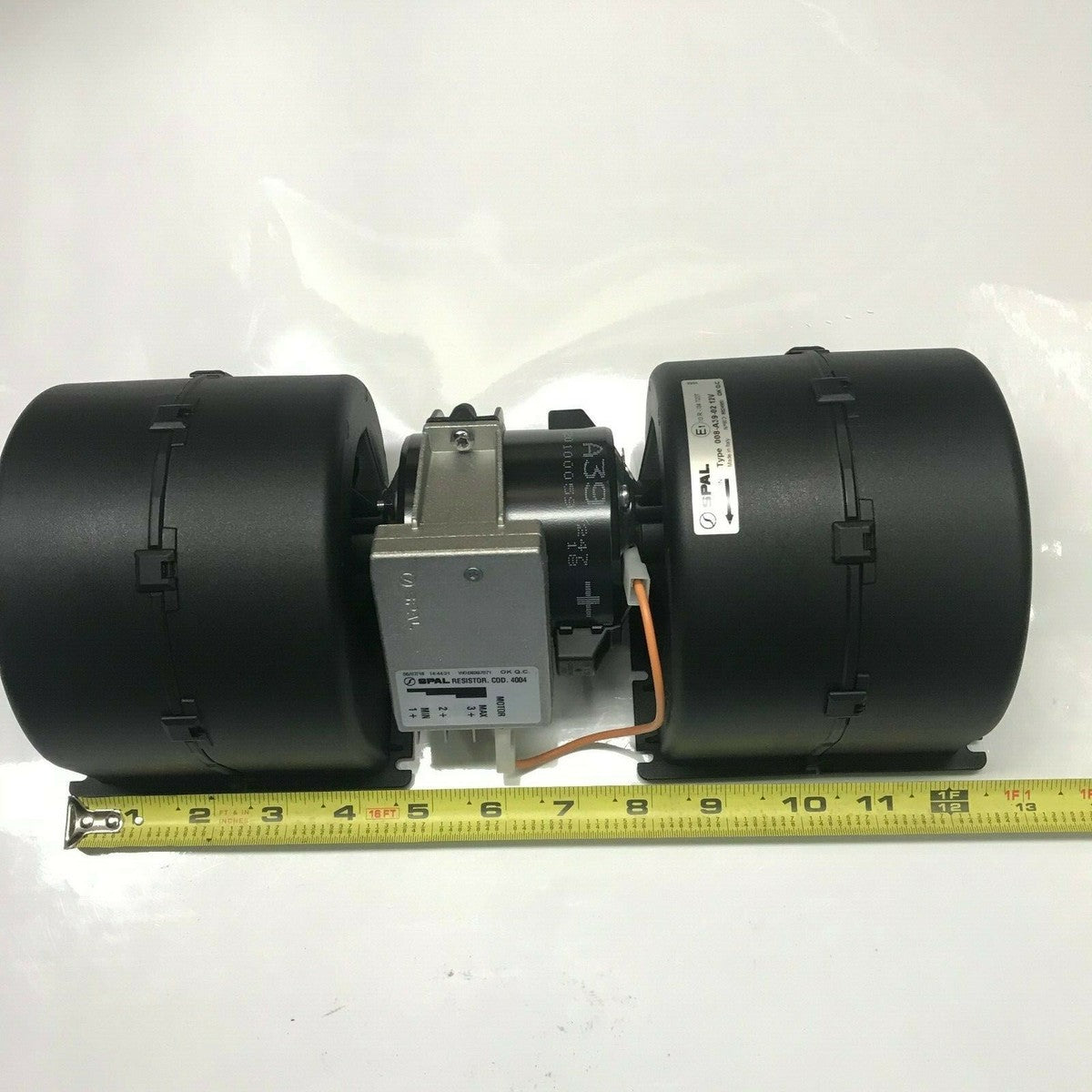

NEW SPAL 12V 008-A54-02 008-A39-02 RD-5-12143-0P BLOWER MOTOR ASSEMBLY
NEW SPAL 12V 008-A54-02 008-A39-02 RD-5-12143-0P BLOWER MOTOR ASSEMBLY
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Unit price
per
Couldn't load pickup availability
Performance chart
| Static pressure | Static pressure | Airflow | Current draw | Airflow | Static pressure |
|---|---|---|---|---|---|
| Pa | mm H₂0 | m³/h | A | CFM | in H₂0 |
| 0.0 | 0.0 | 728.0 | 18.3 | 428.0 | 0.0 |
| 47.0 | 5.0 | 697.0 | 17.6 | 410.0 | 0.2 |
| 103.0 | 11.0 | 662.0 | 16.9 | 390.0 | 0.4 |
| 148.0 | 15.0 | 632.0 | 16.2 | 372.0 | 0.6 |
| 199.0 | 20.0 | 609.0 | 15.8 | 358.0 | 0.8 |
| 249.0 | 25.0 | 581.0 | 15.3 | 342.0 | 1.0 |
| 298.0 | 30.0 | 541.0 | 14.4 | 319.0 | 1.2 |
| 347.0 | 35.0 | 512.0 | 14.0 | 301.0 | 1.4 |
| 397.0 | 41.0 | 478.0 | 13.6 | 281.0 | 1.6 |
| 451.0 | 46.0 | 426.0 | 12.3 | 251.0 | 1.8 |
| 497.0 | 51.0 | 342.0 | 11.1 | 201.0 | 2.0 |
| 552.0 | 56.0 | 202.0 | 8.6 | 119.0 | 2.2 |
| 609.0 | 62.0 | 96.0 | 6.9 | 56.0 | 2.4 |
| 654.0 | 67.0 | 28.0 | 6.2 | 16.0 | 2.6 |
| 675.0 | 69.0 | 0.0 | 5.9 | 0.0 | 2.7 |
