HEMENG COOLERS SYSTEM

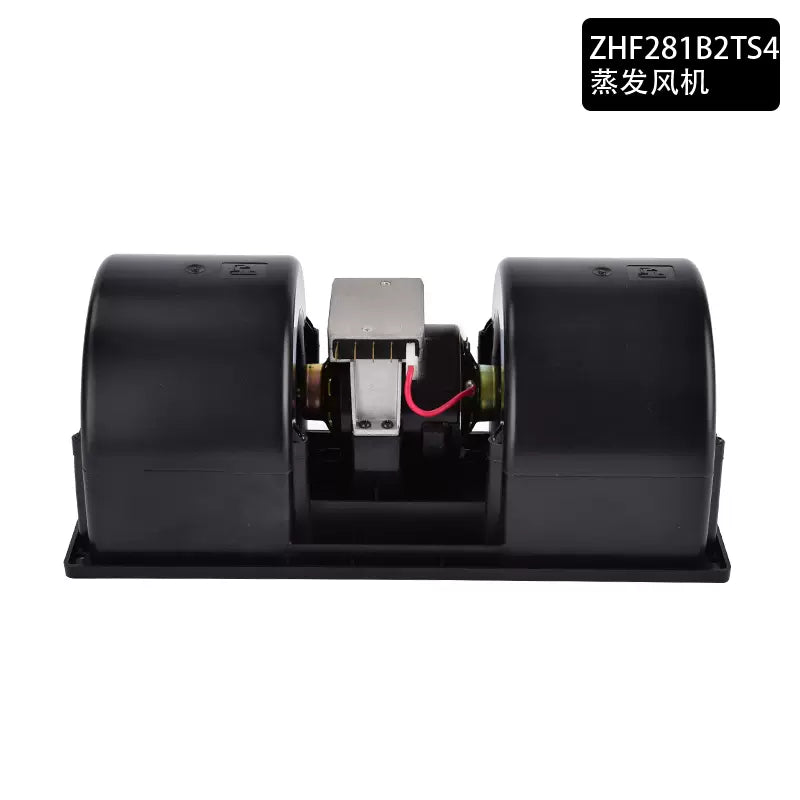

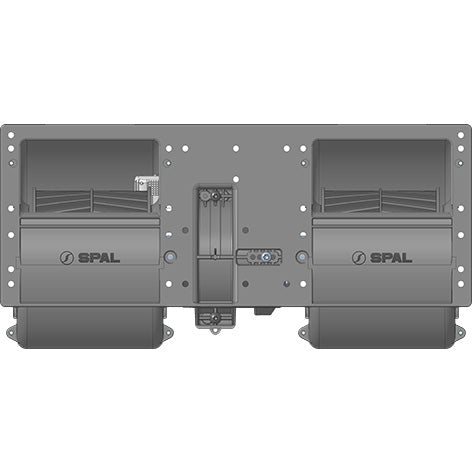

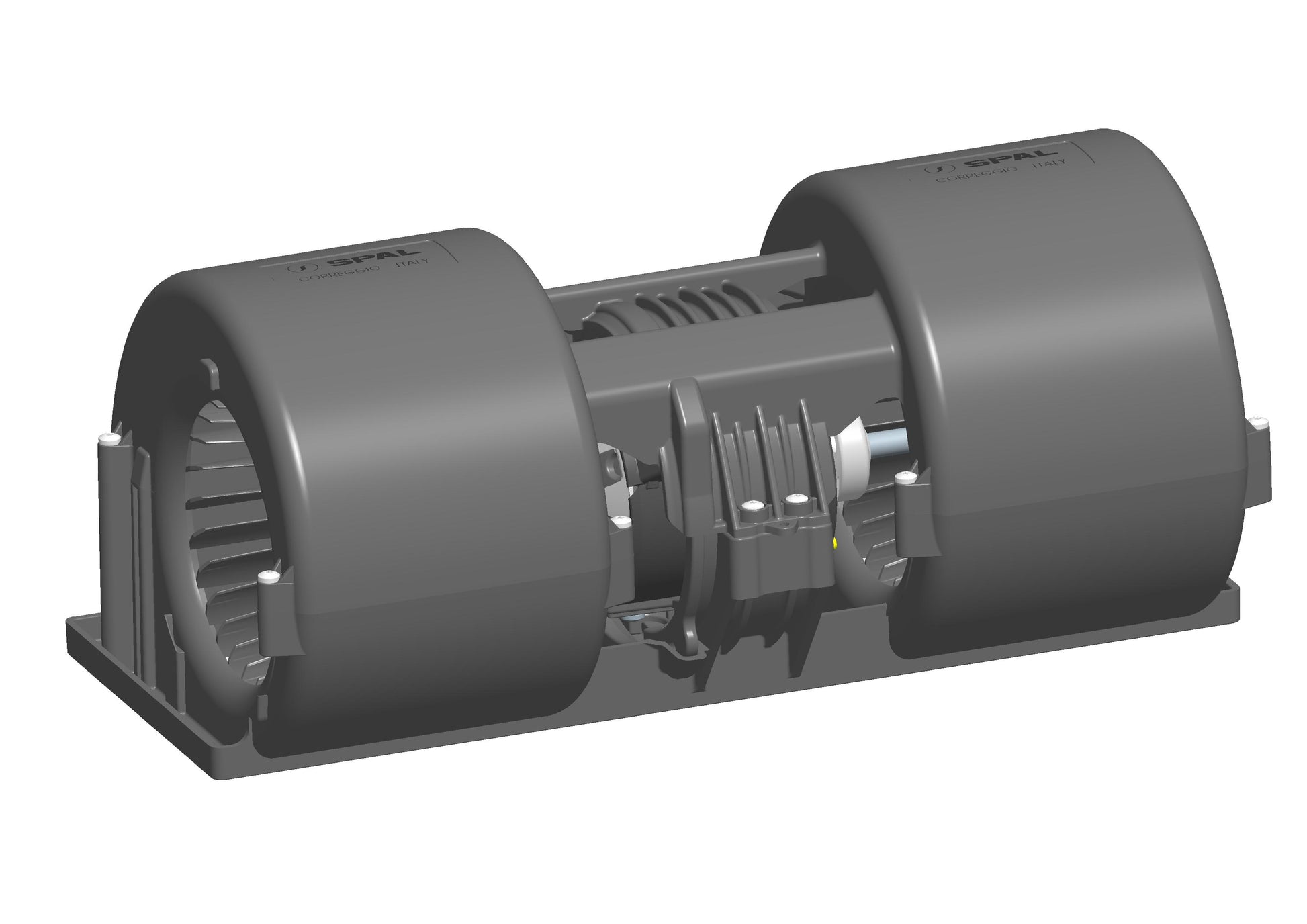

FOR SPAL Centrifugal Blower Motor Double Wheel Counter 017-A39-22 30006704
FOR SPAL Centrifugal Blower Motor Double Wheel Counter 017-A39-22 30006704
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Quantity
Couldn't load pickup availability
Performance chart
| Static pressure | Static pressure | Airflow | Current draw | Airflow | Static pressure |
|---|---|---|---|---|---|
| Pa | mm H₂0 | m³/h | A | CFM | in H₂0 |
| 0.0 | 0.0 | 1198.0 | 32.3 | 705.0 | 0.0 |
| 50.0 | 5.0 | 1158.0 | 31.4 | 682.0 | 0.2 |
| 101.0 | 10.0 | 1110.0 | 30.4 | 653.0 | 0.4 |
| 150.0 | 15.0 | 1065.0 | 29.4 | 627.0 | 0.6 |
| 200.0 | 20.0 | 1018.0 | 28.3 | 599.0 | 0.8 |
| 249.0 | 25.0 | 975.0 | 27.4 | 574.0 | 1.0 |
| 297.0 | 30.0 | 928.0 | 26.3 | 546.0 | 1.2 |
| 354.0 | 36.0 | 885.0 | 25.3 | 521.0 | 1.4 |
| 402.0 | 41.0 | 835.0 | 24.1 | 492.0 | 1.6 |
| 447.0 | 46.0 | 774.0 | 22.7 | 455.0 | 1.8 |
| 496.0 | 51.0 | 715.0 | 21.3 | 421.0 | 2.0 |
| 548.0 | 56.0 | 651.0 | 20.0 | 383.0 | 2.2 |
| 597.0 | 61.0 | 584.0 | 18.6 | 344.0 | 2.4 |
| 653.0 | 67.0 | 490.0 | 16.7 | 288.0 | 2.6 |
| 706.0 | 72.0 | 392.0 | 14.8 | 231.0 | 2.8 |
| 754.0 | 77.0 | 319.0 | 13.6 | 188.0 | 3.0 |
| 796.0 | 81.0 | 263.0 | 13.1 | 155.0 | 3.2 |
