HEMENG COOLERS SYSTEM

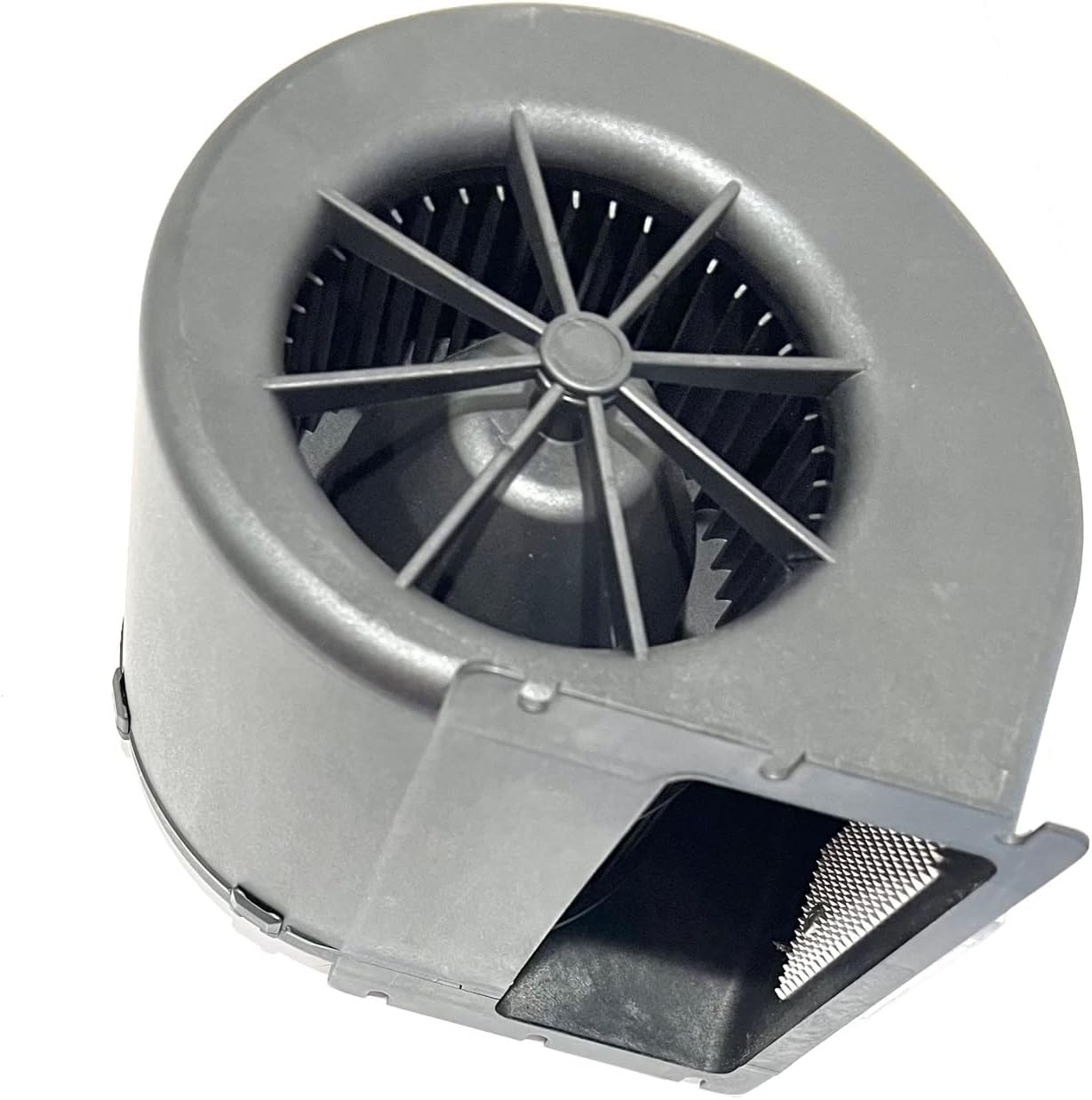

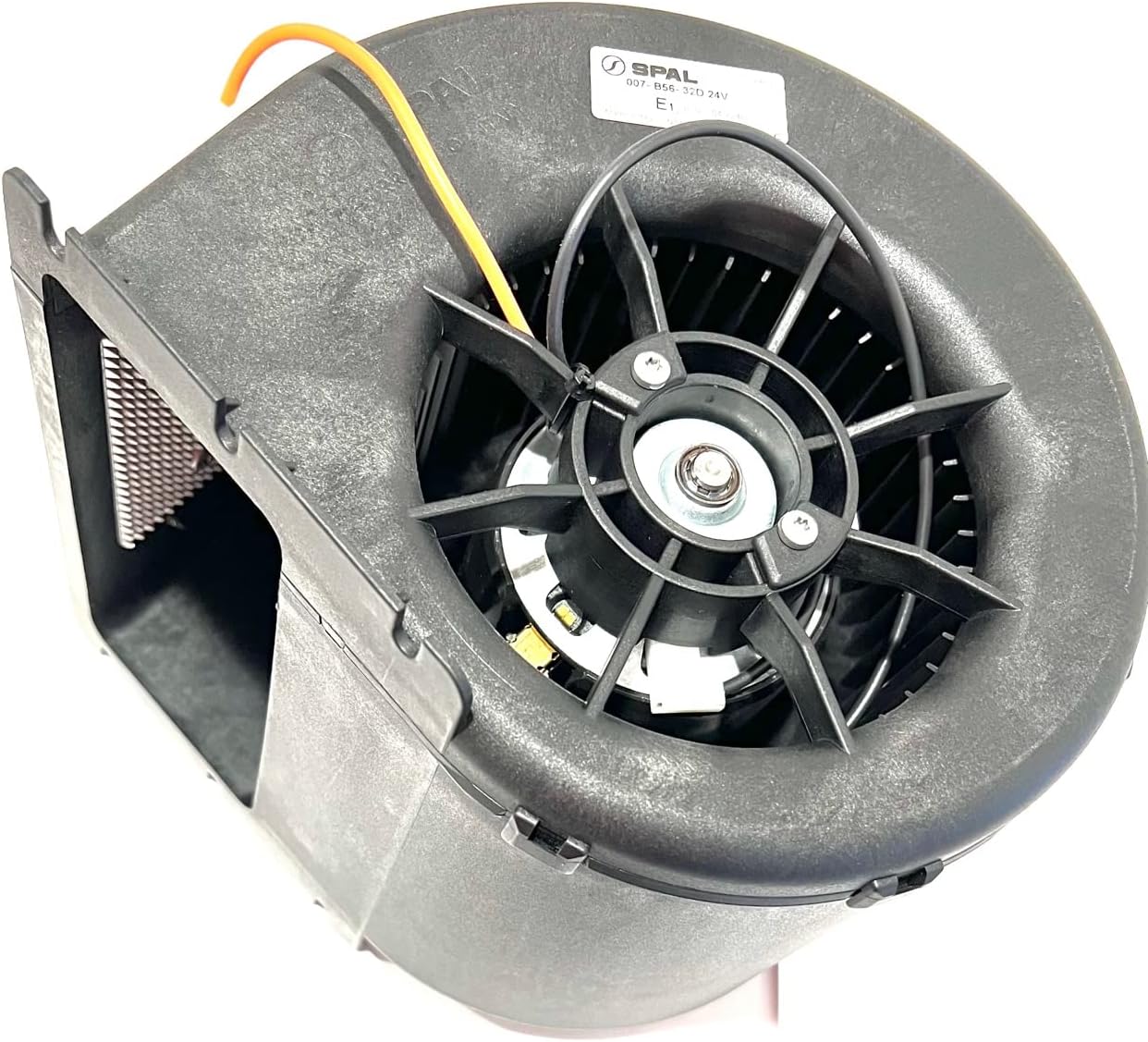

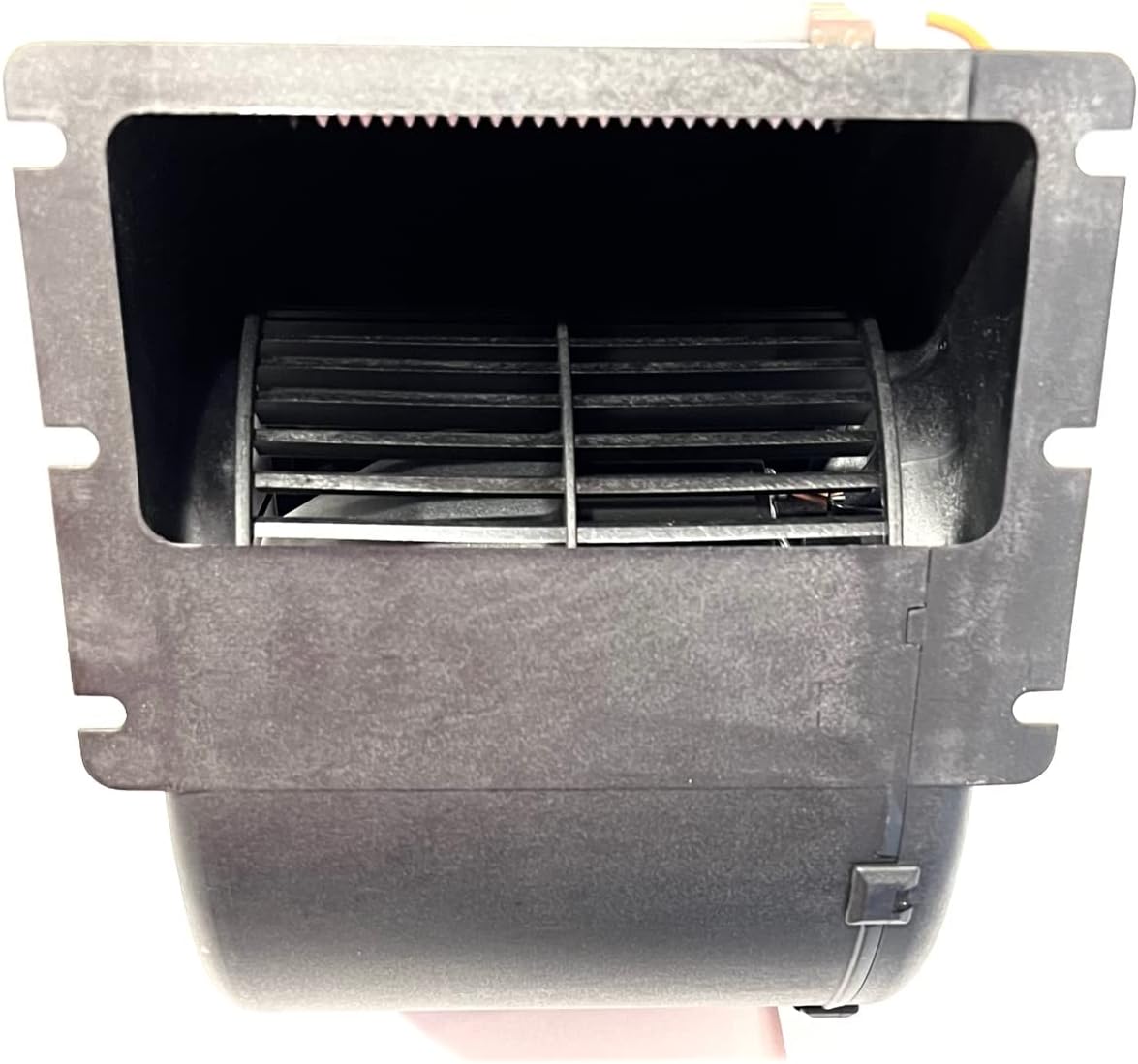

For SPAL 30002606 007-B56-32D 24 Volt Single Wheel Blower Motor 331 CFM 24V
For SPAL 30002606 007-B56-32D 24 Volt Single Wheel Blower Motor 331 CFM 24V
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Quantity
Couldn't load pickup availability
Performance chart
| Static pressure | Static pressure | Airflow | Current draw | Airflow | Static pressure |
|---|---|---|---|---|---|
| Pa | mm H₂0 | m³/h | A | CFM | in H₂0 |
| 0.0 | 0.0 | 879.0 | 12.0 | 517.0 | 0.0 |
| 50.0 | 5.0 | 850.0 | 11.7 | 500.0 | 0.2 |
| 100.0 | 10.0 | 819.0 | 11.4 | 482.0 | 0.4 |
| 149.0 | 15.0 | 792.0 | 11.2 | 466.0 | 0.6 |
| 198.0 | 20.0 | 763.0 | 11.0 | 449.0 | 0.8 |
| 247.0 | 25.0 | 730.0 | 10.6 | 430.0 | 1.0 |
| 297.0 | 30.0 | 698.0 | 10.3 | 411.0 | 1.2 |
| 348.0 | 36.0 | 663.0 | 10.0 | 390.0 | 1.4 |
| 397.0 | 40.0 | 629.0 | 9.8 | 370.0 | 1.6 |
| 451.0 | 46.0 | 582.0 | 9.4 | 343.0 | 1.8 |
| 499.0 | 51.0 | 541.0 | 8.9 | 318.0 | 2.0 |
| 547.0 | 56.0 | 492.0 | 8.4 | 290.0 | 2.2 |
| 595.0 | 61.0 | 425.0 | 7.8 | 250.0 | 2.4 |
| 649.0 | 66.0 | 350.0 | 7.1 | 206.0 | 2.6 |
| 703.0 | 72.0 | 269.0 | 6.4 | 158.0 | 2.8 |
| 750.0 | 77.0 | 197.0 | 5.8 | 116.0 | 3.0 |
| 799.0 | 82.0 | 134.0 | 5.3 | 79.0 | 3.2 |
| 841.0 | 86.0 | 30.0 | 4.7 | 18.0 | 3.4 |
| 848.0 | 87.0 | 0.0 | 4.6 | 0.0 | 3.4 |
