HEMENG COOLERS SYSTEM

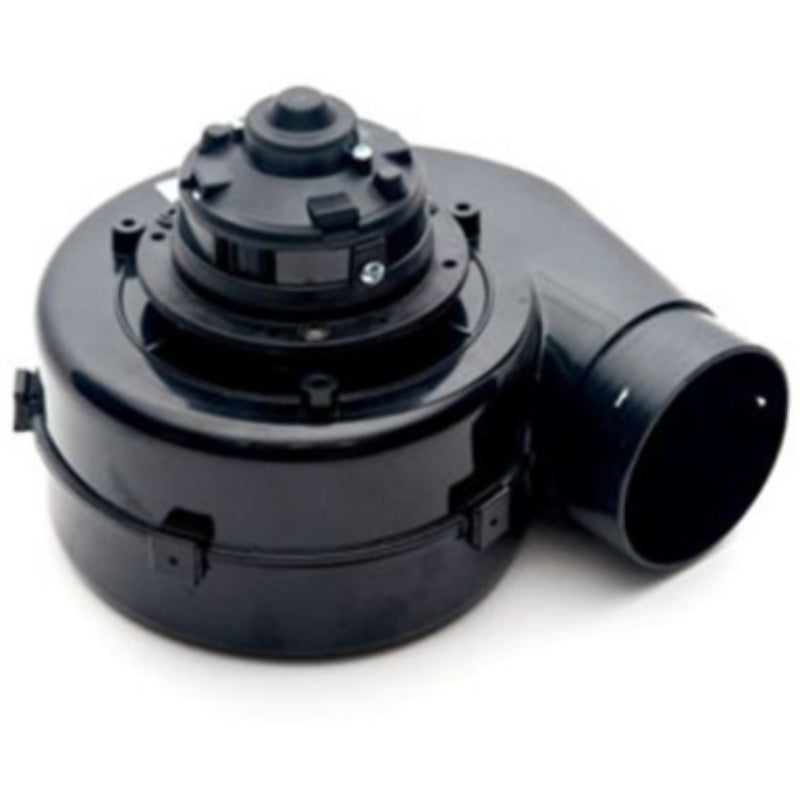

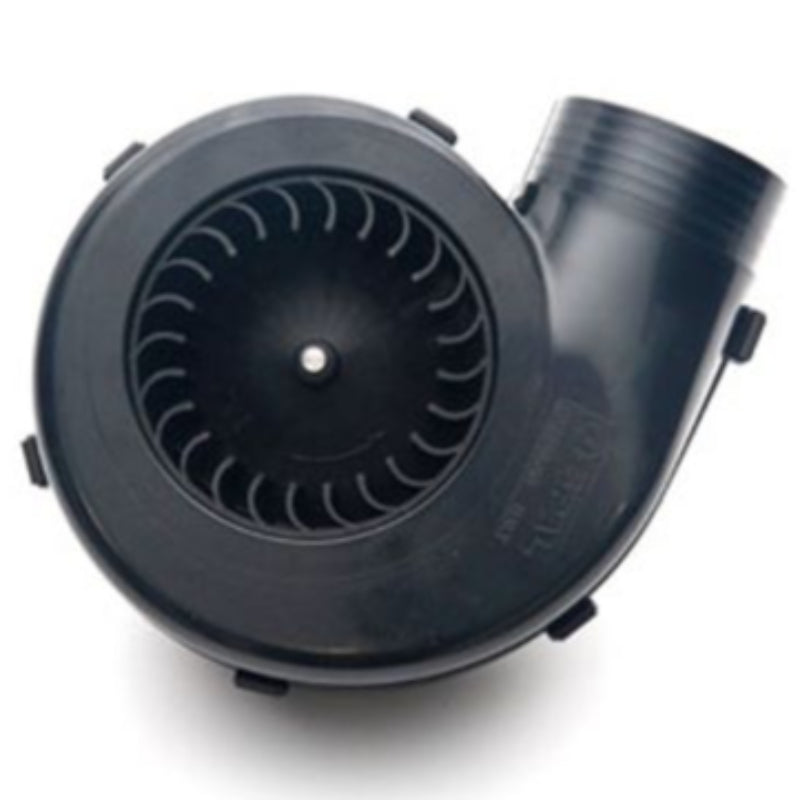

For SPAL 001-B53-01S Single Wheel 24V 24 Volt Blower Fan Long Life 218 CFM, p/n 30000301
For SPAL 001-B53-01S Single Wheel 24V 24 Volt Blower Fan Long Life 218 CFM, p/n 30000301
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Quantity
Couldn't load pickup availability
Performance chart
| Static pressure | Static pressure | Airflow | Current draw | Airflow | Static pressure |
|---|---|---|---|---|---|
| Pa | mm H₂0 | m³/h | A | CFM | in H₂0 |
| 0.0 | 0.0 | 370.0 | 4.4 | 218.0 | 0.0 |
| 50.0 | 5.0 | 353.0 | 4.3 | 208.0 | 0.2 |
| 99.0 | 10.0 | 336.0 | 4.1 | 198.0 | 0.4 |
| 148.0 | 15.0 | 317.0 | 4.0 | 187.0 | 0.6 |
| 198.0 | 20.0 | 299.0 | 3.9 | 176.0 | 0.8 |
| 249.0 | 25.0 | 280.0 | 3.7 | 165.0 | 1.0 |
| 298.0 | 30.0 | 261.0 | 3.6 | 154.0 | 1.2 |
| 353.0 | 36.0 | 235.0 | 3.4 | 139.0 | 1.4 |
| 398.0 | 41.0 | 210.0 | 3.2 | 124.0 | 1.6 |
| 453.0 | 46.0 | 174.0 | 3.1 | 102.0 | 1.8 |
| 498.0 | 51.0 | 100.0 | 2.7 | 59.0 | 2.0 |
| 544.0 | 56.0 | 32.0 | 2.6 | 19.0 | 2.2 |
| 565.0 | 58.0 | 0.0 | 2.5 | 0.0 | 2.3 |
