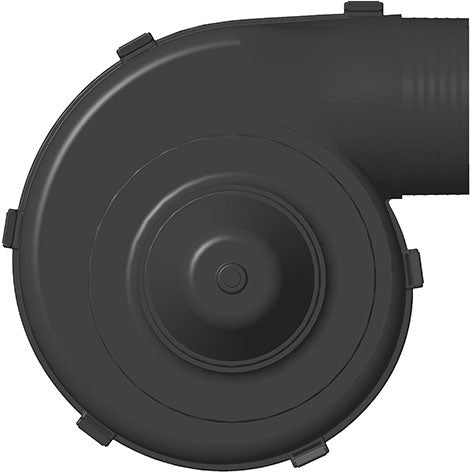

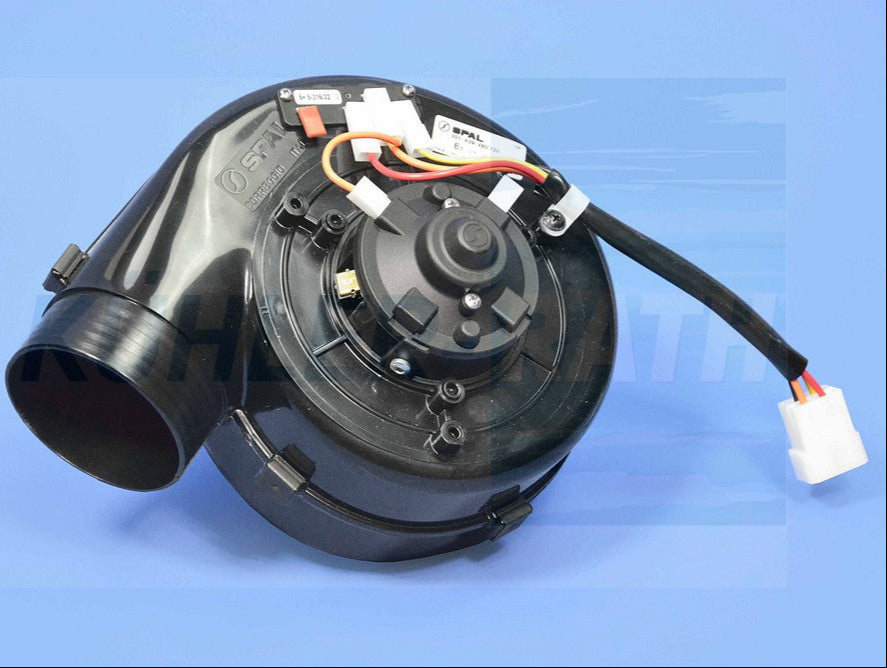

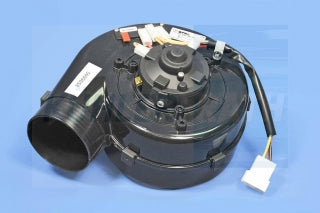

FOR SPAL 001-A39-49D 12V Single Wheel Blower Motor Assembly, 3-Speed 31.1A ( 001A3949D)
FOR SPAL 001-A39-49D 12V Single Wheel Blower Motor Assembly, 3-Speed 31.1A ( 001A3949D)
Regular price
$50.00 USD
Regular price
Sale price
$50.00 USD
Unit price
per
Couldn't load pickup availability
Performance chart
| Static pressure | Static pressure | Airflow | Current draw | Airflow | Static pressure |
|---|---|---|---|---|---|
| Pa | mm H₂0 | m³/h | A | CFM | in H₂0 |
| 0.0 | 0.0 | 556.0 | 27.9 | 327.0 | 0.0 |
| 51.0 | 5.0 | 546.0 | 27.5 | 321.0 | 0.2 |
| 100.0 | 10.0 | 536.0 | 27.2 | 315.0 | 0.4 |
| 150.0 | 15.0 | 523.0 | 26.8 | 308.0 | 0.6 |
| 200.0 | 20.0 | 513.0 | 26.5 | 302.0 | 0.8 |
| 249.0 | 25.0 | 504.0 | 26.3 | 296.0 | 1.0 |
| 298.0 | 30.0 | 492.0 | 25.9 | 290.0 | 1.2 |
| 348.0 | 35.0 | 482.0 | 25.7 | 284.0 | 1.4 |
| 397.0 | 41.0 | 471.0 | 25.3 | 277.0 | 1.6 |
| 446.0 | 45.0 | 461.0 | 25.0 | 271.0 | 1.8 |
| 497.0 | 51.0 | 448.0 | 24.6 | 264.0 | 2.0 |
| 552.0 | 56.0 | 435.0 | 24.1 | 256.0 | 2.2 |
| 606.0 | 62.0 | 421.0 | 23.6 | 248.0 | 2.4 |
| 644.0 | 66.0 | 411.0 | 23.3 | 242.0 | 2.6 |
| 694.0 | 71.0 | 397.0 | 22.7 | 234.0 | 2.8 |
| 743.0 | 76.0 | 381.0 | 22.1 | 224.0 | 3.0 |
| 795.0 | 81.0 | 364.0 | 21.5 | 214.0 | 3.2 |
| 853.0 | 87.0 | 345.0 | 20.8 | 203.0 | 3.4 |
| 893.0 | 91.0 | 327.0 | 20.3 | 192.0 | 3.6 |
| 950.0 | 97.0 | 291.0 | 19.2 | 171.0 | 3.8 |
| 1004.0 | 102.0 | 255.0 | 17.9 | 150.0 | 4.0 |
| 1051.0 | 107.0 | 220.0 | 17.0 | 130.0 | 4.2 |
| 1103.0 | 113.0 | 174.0 | 15.7 | 102.0 | 4.4 |
| 1153.0 | 118.0 | 145.0 | 14.9 | 85.0 | 4.6 |
| 1206.0 | 123.0 | 123.0 | 14.4 | 72.0 | 4.8 |
| 1258.0 | 128.0 | 90.0 | 13.5 | 53.0 | 5.1 |
| 1290.0 | 132.0 | 57.0 | 12.4 | 34.0 | 5.2 |
| 1299.0 | 133.0 | 0.0 | 11.1 | 0.0 | 5.2 |
