HEMENG COOLERS SYSTEM

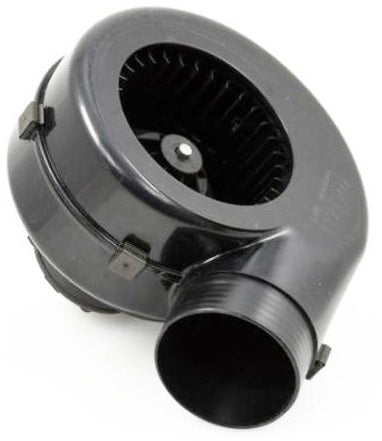

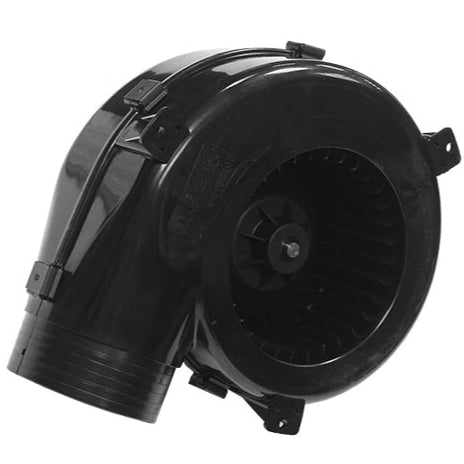

Cooling Fan/Blower Motor For Spal 12V 001-A46-03D (3 Speeds)
Cooling Fan/Blower Motor For Spal 12V 001-A46-03D (3 Speeds)
Regular price
$50.00 USD
Regular price
Sale price
$50.00 USD
Unit price
per
Couldn't load pickup availability
Performance chart
| Static pressure | Static pressure | Airflow | Current draw | Airflow | Static pressure |
|---|---|---|---|---|---|
| Pa | mm H₂0 | m³/h | A | CFM | in H₂0 |
| 0.0 | 0.0 | 446.0 | 12.4 | 262.0 | 0.0 |
| 48.0 | 5.0 | 430.0 | 12.2 | 253.0 | 0.2 |
| 100.0 | 10.0 | 416.0 | 12.0 | 245.0 | 0.4 |
| 148.0 | 15.0 | 403.0 | 11.8 | 237.0 | 0.6 |
| 199.0 | 20.0 | 386.0 | 11.5 | 227.0 | 0.8 |
| 248.0 | 25.0 | 371.0 | 11.2 | 218.0 | 1.0 |
| 295.0 | 30.0 | 356.0 | 11.0 | 209.0 | 1.2 |
| 347.0 | 35.0 | 340.0 | 10.7 | 200.0 | 1.4 |
| 395.0 | 40.0 | 323.0 | 10.4 | 190.0 | 1.6 |
| 445.0 | 45.0 | 307.0 | 10.2 | 180.0 | 1.8 |
| 496.0 | 51.0 | 284.0 | 9.8 | 167.0 | 2.0 |
| 546.0 | 56.0 | 254.0 | 9.1 | 150.0 | 2.2 |
| 597.0 | 61.0 | 207.0 | 8.1 | 122.0 | 2.4 |
| 651.0 | 66.0 | 152.0 | 7.5 | 89.0 | 2.6 |
| 696.0 | 71.0 | 97.0 | 6.7 | 57.0 | 2.8 |
| 756.0 | 77.0 | 56.0 | 6.4 | 56.0 | 3.0 |
| 796.0 | 81.0 | 34.0 | 6.4 | 20.0 | 3.2 |
| 829.0 | 85.0 | 0.0 | 6.4 | 0.0 | 3.3 |
