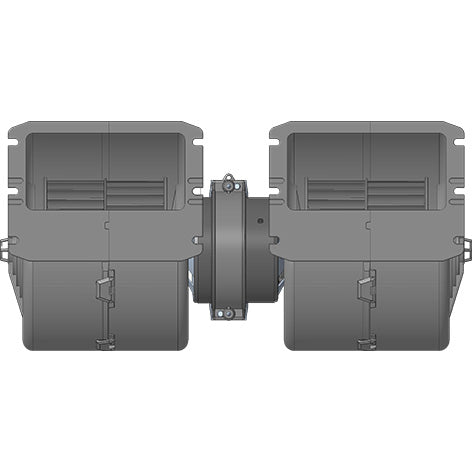

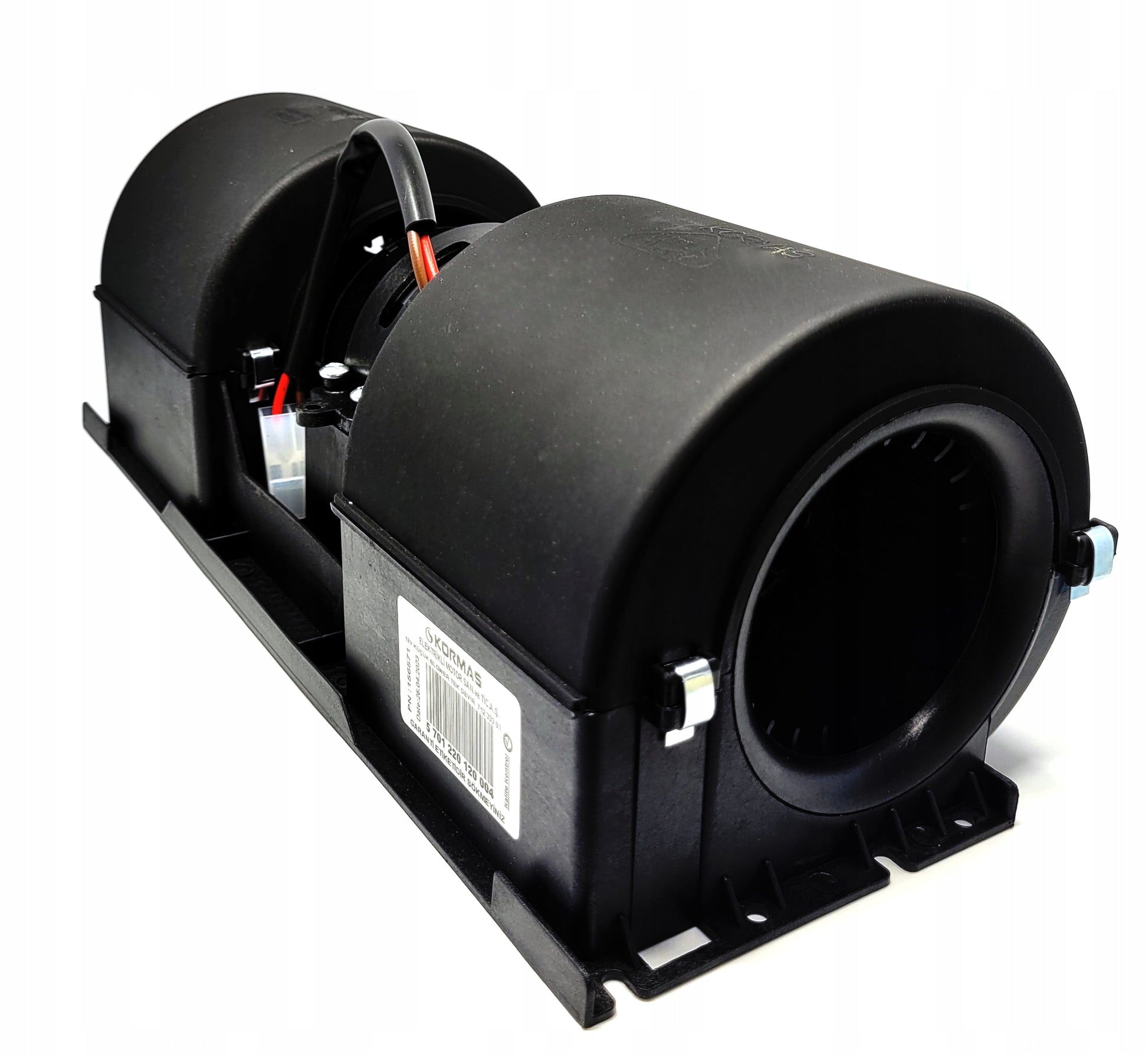

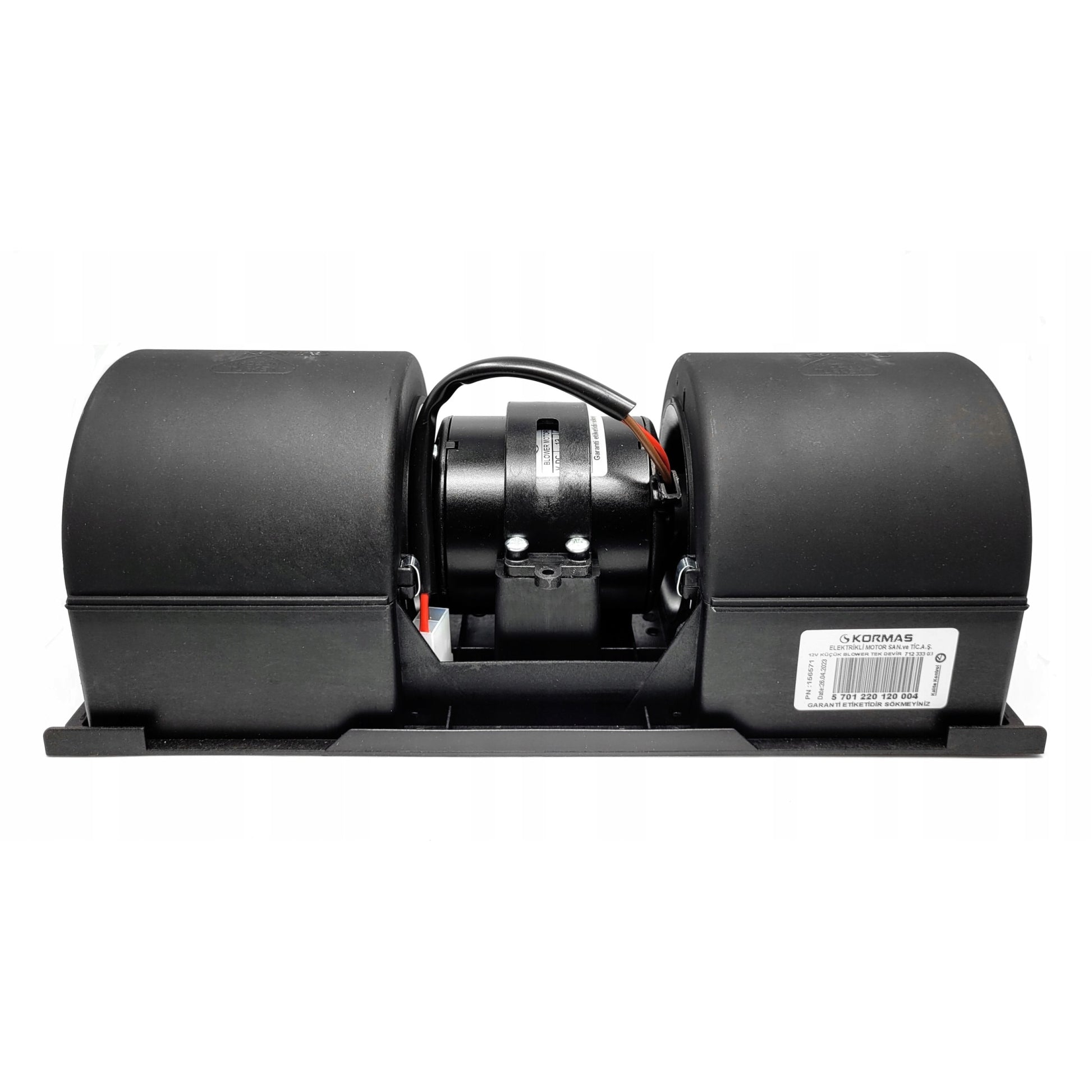

Car Blower Motor Fan 12V typ For SPAL 009-A45-22
Car Blower Motor Fan 12V typ For SPAL 009-A45-22
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Quantity
Couldn't load pickup availability
Performance chart
| Static pressure | Static pressure | Airflow | Current draw | Airflow | Static pressure |
|---|---|---|---|---|---|
| Pa | mm H₂0 | m³/h | A | CFM | in H₂0 |
| 0.0 | 0.0 | 977.0 | 20.1 | 575.0 | 0.0 |
| 51.0 | 5.0 | 929.0 | 19.2 | 547.0 | 0.2 |
| 98.0 | 10.0 | 885.0 | 18.5 | 521.0 | 0.4 |
| 151.0 | 15.0 | 839.0 | 18.0 | 494.0 | 0.6 |
| 199.0 | 20.0 | 784.0 | 17.2 | 462.0 | 0.8 |
| 247.0 | 25.0 | 739.0 | 16.6 | 435.0 | 1.0 |
| 297.0 | 30.0 | 685.0 | 15.9 | 403.0 | 1.2 |
| 347.0 | 35.0 | 631.0 | 15.2 | 371.0 | 1.4 |
| 399.0 | 41.0 | 562.0 | 14.2 | 331.0 | 1.6 |
| 451.0 | 46.0 | 483.0 | 13.1 | 284.0 | 1.8 |
| 496.0 | 51.0 | 390.0 | 11.8 | 230.0 | 2.0 |
| 548.0 | 56.0 | 248.0 | 10.6 | 146.0 | 2.2 |
| 599.0 | 61.0 | 149.0 | 9.8 | 88.0 | 2.4 |
| 649.0 | 66.0 | 63.0 | 9.2 | 37.0 | 2.6 |
| 677.0 | 69.0 | 0.0 | 9.0 | 0.0 | 2.7 |
