HEMENG COOLERS SYSTEM

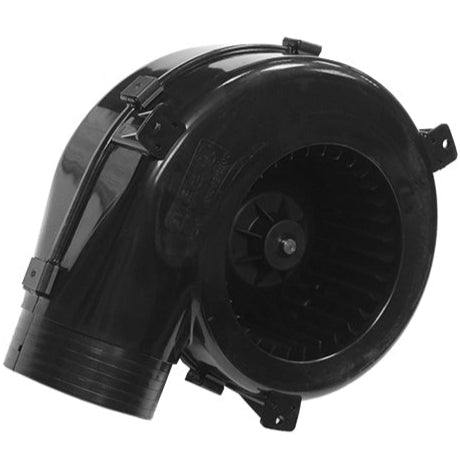

blower motor suitable for spal 001A4601D 001-A46-01D
blower motor suitable for spal 001A4601D 001-A46-01D
Regular price
$50.00 USD
Regular price
Sale price
$50.00 USD
Unit price
per
Couldn't load pickup availability
Performance chart
| Static pressure | Static pressure | Airflow | Current draw | Airflow | Static pressure |
|---|---|---|---|---|---|
| Pa | mm H₂0 | m³/h | A | CFM | in H₂0 |
| 0.0 | 0.0 | 387.0 | 9.3 | 228.0 | 0.0 |
| 50.0 | 5.0 | 369.0 | 9.0 | 217.0 | 0.2 |
| 101.0 | 10.0 | 351.0 | 8.8 | 207.0 | 0.4 |
| 149.0 | 15.0 | 334.0 | 8.5 | 196.0 | 0.6 |
| 198.0 | 20.0 | 314.0 | 8.2 | 185.0 | 0.8 |
| 250.0 | 25.0 | 298.0 | 8.0 | 176.0 | 1.0 |
| 299.0 | 30.0 | 277.0 | 7.6 | 163.0 | 1.2 |
| 352.0 | 36.0 | 253.0 | 7.2 | 149.0 | 1.4 |
| 400.0 | 41.0 | 229.0 | 6.9 | 135.0 | 1.6 |
| 447.0 | 46.0 | 197.0 | 6.4 | 116.0 | 1.8 |
| 501.0 | 51.0 | 128.0 | 5.9 | 76.0 | 2.0 |
| 551.0 | 56.0 | 49.0 | 5.3 | 29.0 | 2.2 |
| 590.0 | 60.0 | 0.0 | 5.1 | 0.0 | 2.4 |
