HEMENG COOLERS SYSTEM

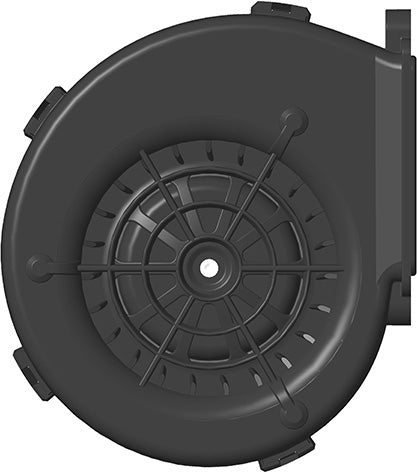

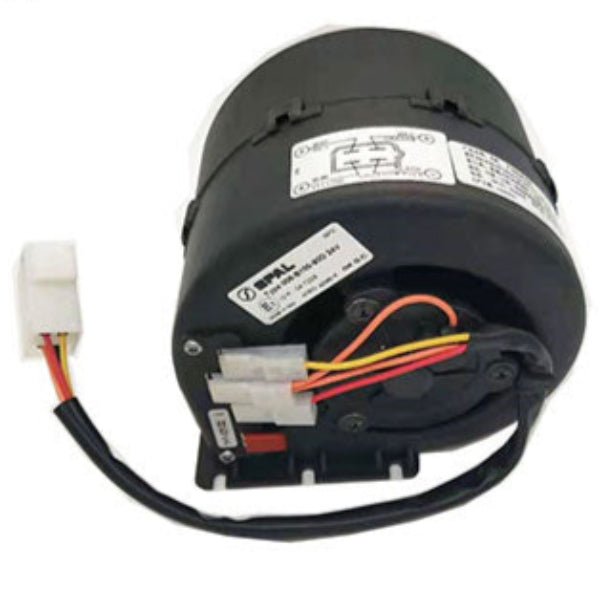

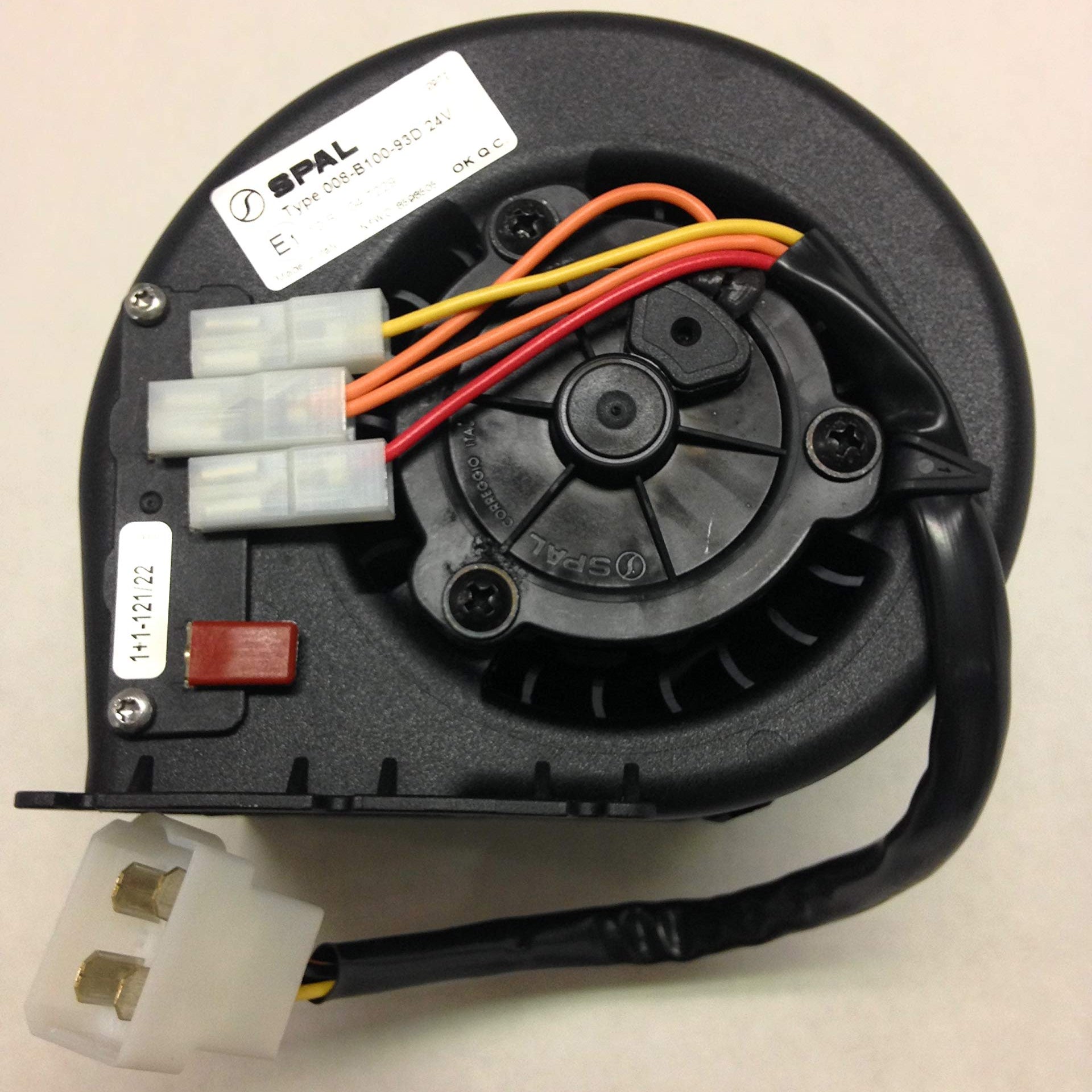

blower motor fan suitable for SPAL 002B10093D 002B37C42D 002-B100-93D 002-B37/C-42D
blower motor fan suitable for SPAL 002B10093D 002B37C42D 002-B100-93D 002-B37/C-42D
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Quantity
Couldn't load pickup availability
Performance chart
| Static pressure | Static pressure | Airflow | Current draw | Airflow | Static pressure |
|---|---|---|---|---|---|
| Pa | mm H₂0 | m³/h | A | CFM | in H₂0 |
| 0.0 | 0.0 | 254.0 | 2.7 | 150.0 | 0.0 |
| 27.0 | 3.0 | 239.0 | 2.6 | 141.0 | 0.1 |
| 51.0 | 5.0 | 227.0 | 2.4 | 134.0 | 0.2 |
| 74.0 | 8.0 | 215.0 | 2.3 | 127.0 | 0.3 |
| 100.0 | 10.0 | 202.0 | 2.2 | 119.0 | 0.4 |
| 125.0 | 13.0 | 191.0 | 2.2 | 112.0 | 0.5 |
| 150.0 | 15.0 | 181.0 | 2.1 | 107.0 | 0.6 |
| 177.0 | 18.0 | 172.0 | 2.0 | 101.0 | 0.7 |
| 199.0 | 20.0 | 165.0 | 2.0 | 97.0 | 0.8 |
| 226.0 | 23.0 | 157.0 | 2.0 | 92.0 | 0.9 |
| 248.0 | 25.0 | 142.0 | 1.9 | 83.0 | 1.0 |
| 275.0 | 28.0 | 132.0 | 1.9 | 78.0 | 1.1 |
| 302.0 | 31.0 | 122.0 | 1.8 | 72.0 | 1.2 |
| 324.0 | 33.0 | 108.0 | 1.7 | 64.0 | 1.3 |
| 352.0 | 36.0 | 71.0 | 1.5 | 42.0 | 1.4 |
| 377.0 | 38.0 | 62.0 | 1.5 | 36.0 | 1.5 |
| 405.0 | 41.0 | 32.0 | 1.3 | 19.0 | 1.6 |
| 423.0 | 43.0 | 0.0 | 1.3 | 0.0 | 1.7 |
