HEMENG COOLERS SYSTEM

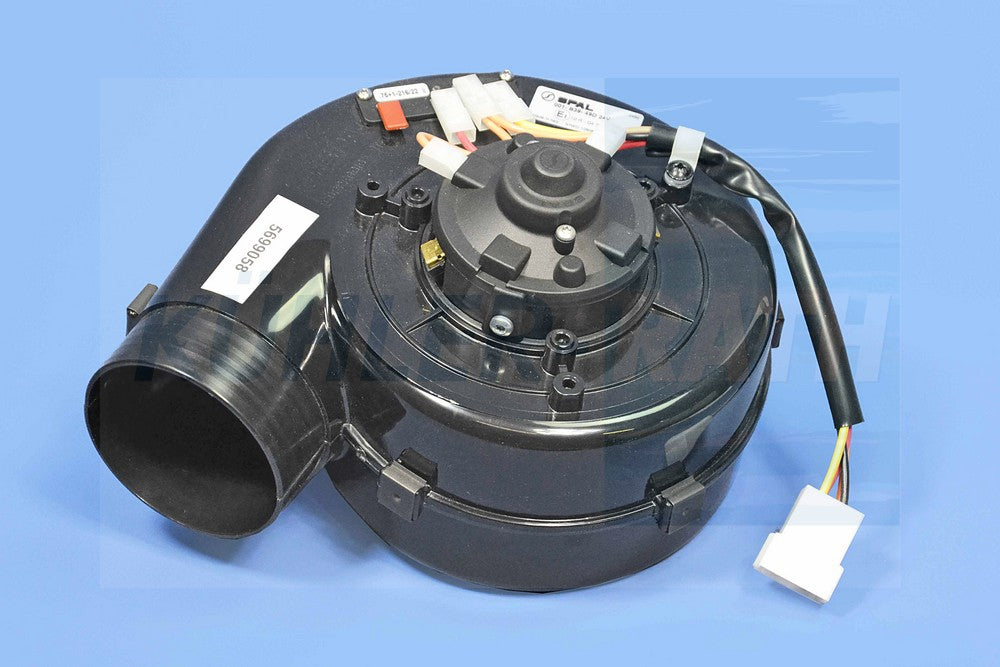

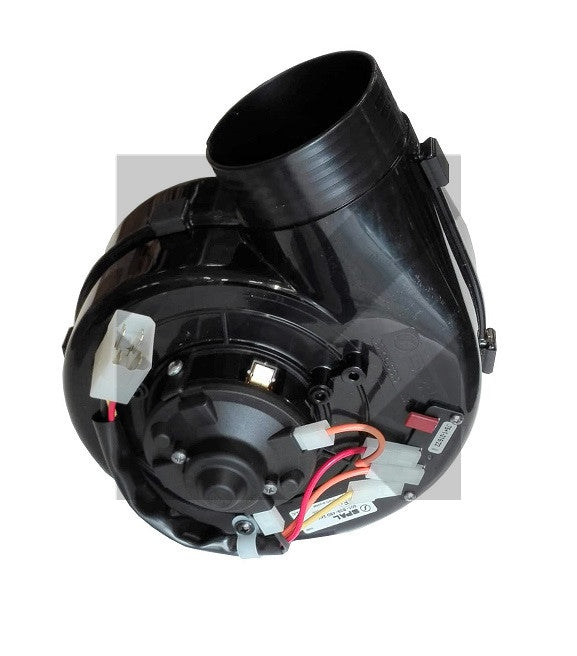

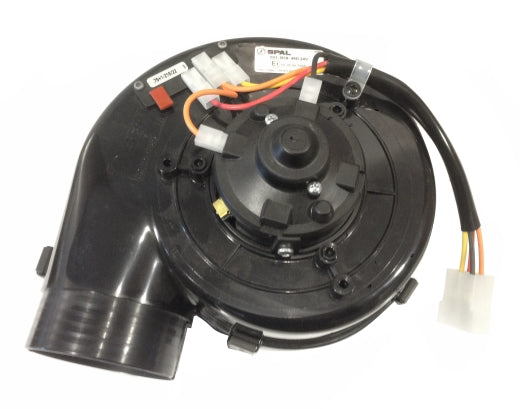

blower motor fan suitable for SPAL 001B3949D 001-B39-49D
blower motor fan suitable for SPAL 001B3949D 001-B39-49D
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Quantity
Couldn't load pickup availability
Performance chart
| Static pressure | Static pressure | Airflow | Current draw | Airflow | Static pressure |
|---|---|---|---|---|---|
| Pa | mm H₂0 | m³/h | A | CFM | in H₂0 |
| 0.0 | 0.0 | 607.0 | 15.2 | 358.0 | 0.0 |
| 51.0 | 5.0 | 599.0 | 15.1 | 353.0 | 0.2 |
| 97.0 | 10.0 | 591.0 | 14.9 | 348.0 | 0.4 |
| 151.0 | 15.0 | 582.0 | 14.9 | 342.0 | 0.6 |
| 200.0 | 20.0 | 569.0 | 14.4 | 335.0 | 0.8 |
| 252.0 | 26.0 | 562.0 | 14.5 | 331.0 | 1.0 |
| 300.0 | 31.0 | 546.0 | 14.1 | 321.0 | 1.2 |
| 349.0 | 36.0 | 539.0 | 14.1 | 317.0 | 1.4 |
| 399.0 | 41.0 | 533.0 | 14.1 | 314.0 | 1.6 |
| 449.0 | 46.0 | 524.0 | 14.1 | 308.0 | 1.8 |
| 498.0 | 51.0 | 504.0 | 13.4 | 296.0 | 2.0 |
| 551.0 | 56.0 | 491.0 | 13.2 | 289.0 | 2.2 |
| 602.0 | 61.0 | 480.0 | 13.0 | 283.0 | 2.4 |
| 651.0 | 66.0 | 468.0 | 12.8 | 276.0 | 2.6 |
| 700.0 | 71.0 | 451.0 | 12.4 | 266.0 | 2.8 |
| 748.0 | 76.0 | 440.0 | 12.2 | 259.0 | 3.0 |
| 803.0 | 82.0 | 423.0 | 11.9 | 249.0 | 3.2 |
| 845.0 | 86.0 | 408.0 | 11.7 | 240.0 | 3.4 |
| 900.0 | 92.0 | 380.0 | 11.1 | 224.0 | 3.6 |
| 955.0 | 97.0 | 344.0 | 10.5 | 203.0 | 3.8 |
| 1003.0 | 102.0 | 317.0 | 10.0 | 186.0 | 4.0 |
| 1057.0 | 108.0 | 282.0 | 9.4 | 166.0 | 4.2 |
| 1096.0 | 112.0 | 245.0 | 9.0 | 144.0 | 4.4 |
| 1147.0 | 117.0 | 203.0 | 8.5 | 120.0 | 4.6 |
| 1193.0 | 122.0 | 178.0 | 8.1 | 105.0 | 4.8 |
| 1255.0 | 128.0 | 153.0 | 7.9 | 90.0 | 5.0 |
| 1303.0 | 133.0 | 136.0 | 7.8 | 80.0 | 5.2 |
| 1353.0 | 138.0 | 113.0 | 7.5 | 66.0 | 5.4 |
| 1388.0 | 142.0 | 76.0 | 6.8 | 45.0 | 5.6 |
| 1439.0 | 147.0 | 0.0 | 6.2 | 0.0 | 5.8 |
