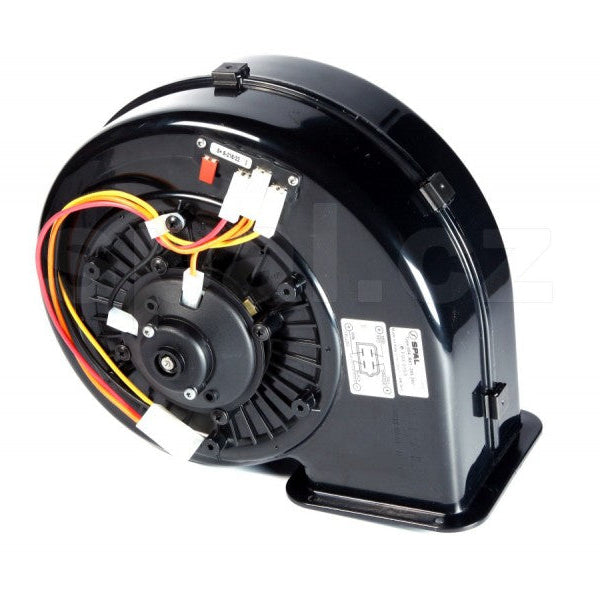

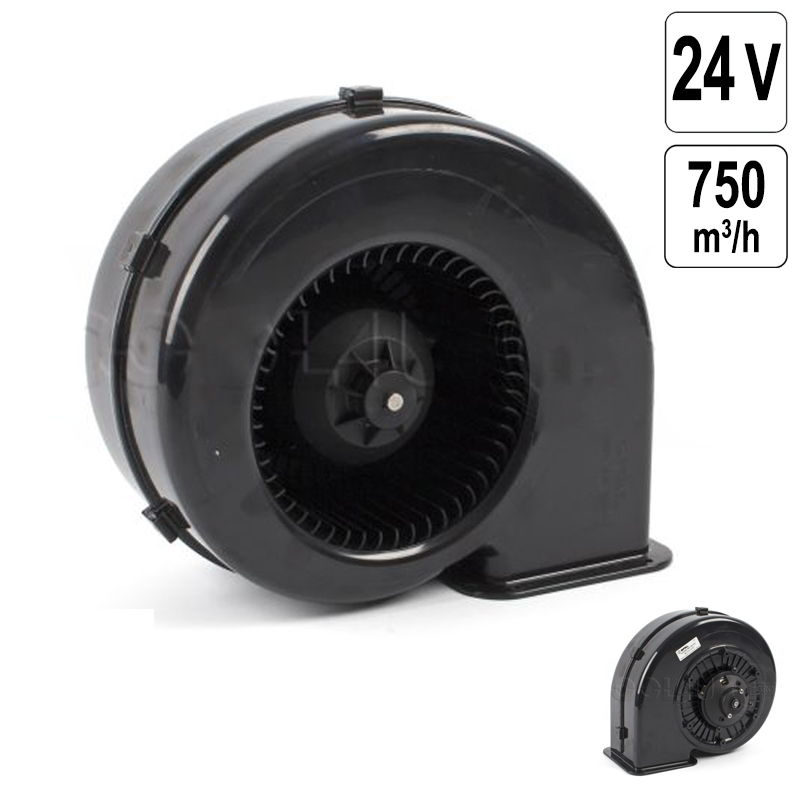

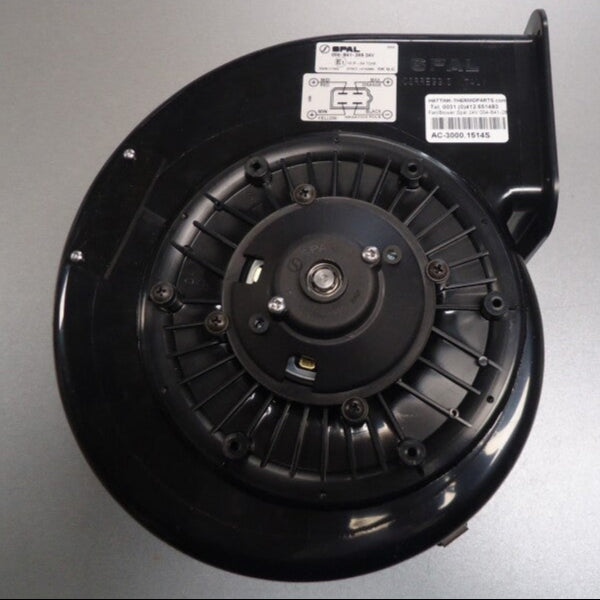

Blower Motor Fan For Spal 24V 004-B41-28S (1 Speed)
Blower Motor Fan For Spal 24V 004-B41-28S (1 Speed)
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Quantity
Couldn't load pickup availability
Performance chart
| Static pressure | Static pressure | Airflow | Current draw | Airflow | Static pressure |
|---|---|---|---|---|---|
| Pa | mm H₂0 | m³/h | A | CFM | in H₂0 |
| 0.0 | 0.0 | 779.0 | 10.3 | 459.0 | 0.0 |
| 48.0 | 5.0 | 744.0 | 10.0 | 438.0 | 0.2 |
| 99.0 | 10.0 | 718.0 | 9.8 | 423.0 | 0.4 |
| 151.0 | 15.0 | 684.0 | 9.4 | 402.0 | 0.6 |
| 199.0 | 20.0 | 652.0 | 9.1 | 384.0 | 0.8 |
| 248.0 | 25.0 | 615.0 | 8.7 | 362.0 | 1.0 |
| 298.0 | 30.0 | 578.0 | 8.4 | 340.0 | 1.2 |
| 347.0 | 35.0 | 540.0 | 8.1 | 318.0 | 1.4 |
| 397.0 | 40.0 | 502.0 | 7.8 | 295.0 | 1.6 |
| 445.0 | 45.0 | 462.0 | 7.5 | 272.0 | 1.8 |
| 498.0 | 51.0 | 408.0 | 7.0 | 240.0 | 2.0 |
| 548.0 | 56.0 | 349.0 | 6.5 | 205.0 | 2.2 |
| 598.0 | 61.0 | 270.0 | 5.8 | 159.0 | 2.4 |
| 646.0 | 66.0 | 146.0 | 4.9 | 86.0 | 2.6 |
| 700.0 | 71.0 | 78.0 | 4.5 | 46.0 | 2.8 |
| 739.0 | 75.0 | 0.0 | 4.2 | 0.0 | 3.0 |
