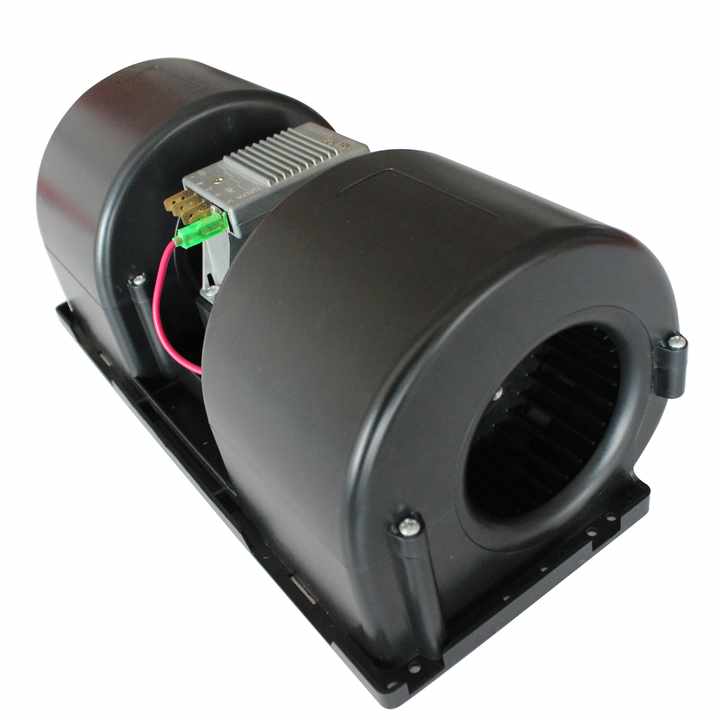

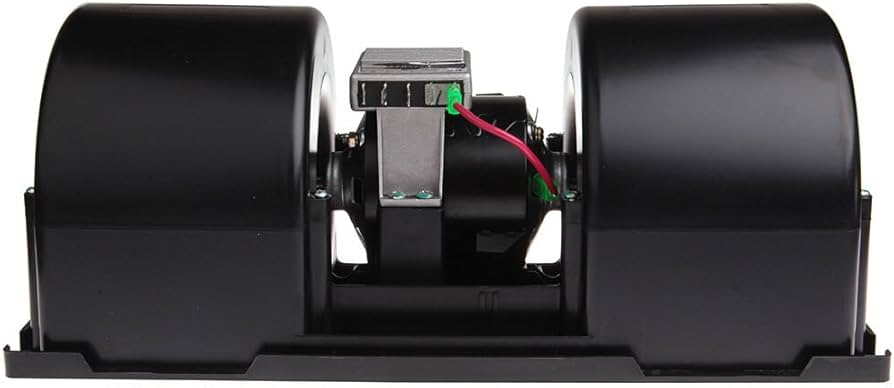

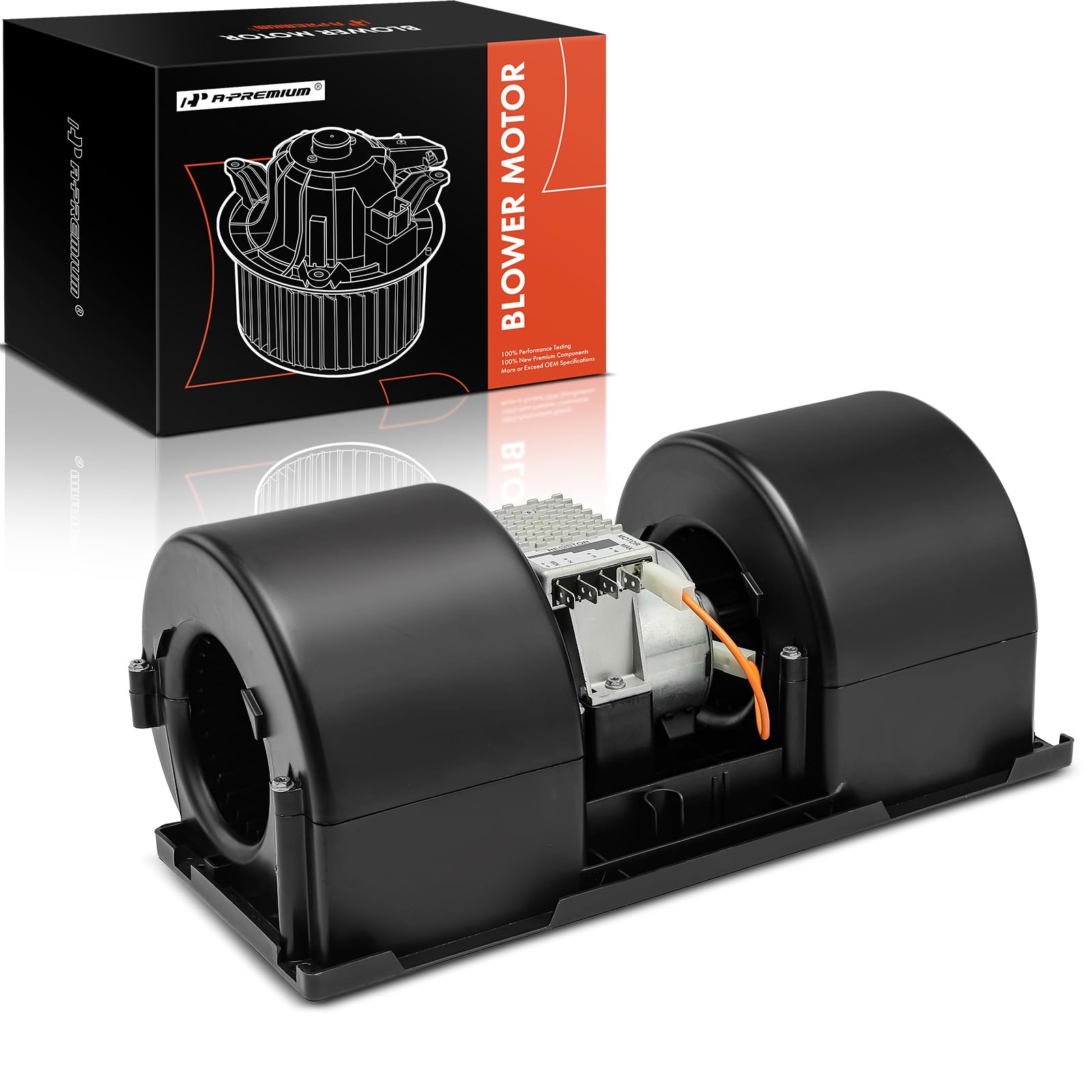

Blower Motor Fan For SPAL 12V evaporator radial 13,5A 3 speeds 006-A40-22
Blower Motor Fan For SPAL 12V evaporator radial 13,5A 3 speeds 006-A40-22
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Quantity
Couldn't load pickup availability
Performance chart
| Static pressure | Static pressure | Airflow | Current draw | Airflow | Static pressure |
|---|---|---|---|---|---|
| Pa | mm H₂0 | m³/h | A | CFM | in H₂0 |
| 0.0 | 0.0 | 1054.0 | 23.1 | 621.0 | 0.0 |
| 50.0 | 5.0 | 1014.0 | 22.4 | 597.0 | 0.2 |
| 100.0 | 10.0 | 975.0 | 21.9 | 574.0 | 0.4 |
| 149.0 | 15.0 | 934.0 | 21.4 | 550.0 | 0.6 |
| 201.0 | 21.0 | 889.0 | 20.7 | 523.0 | 0.8 |
| 250.0 | 26.0 | 841.0 | 20.1 | 495.0 | 1.0 |
| 301.0 | 31.0 | 790.0 | 19.4 | 465.0 | 1.2 |
| 351.0 | 36.0 | 742.0 | 18.8 | 436.0 | 1.4 |
| 400.0 | 41.0 | 691.0 | 17.9 | 407.0 | 1.6 |
| 450.0 | 46.0 | 633.0 | 17.1 | 373.0 | 1.8 |
| 502.0 | 51.0 | 562.0 | 16.0 | 331.0 | 2.0 |
| 548.0 | 56.0 | 454.0 | 14.1 | 267.0 | 2.2 |
| 602.0 | 61.0 | 316.0 | 11.9 | 186.0 | 2.4 |
| 648.0 | 66.0 | 215.0 | 10.4 | 126.0 | 2.6 |
| 699.0 | 71.0 | 125.0 | 10.0 | 73.0 | 2.8 |
| 746.0 | 76.0 | 0.0 | 9.3 | 0.0 | 3.0 |
