HEMENG COOLERS SYSTEM

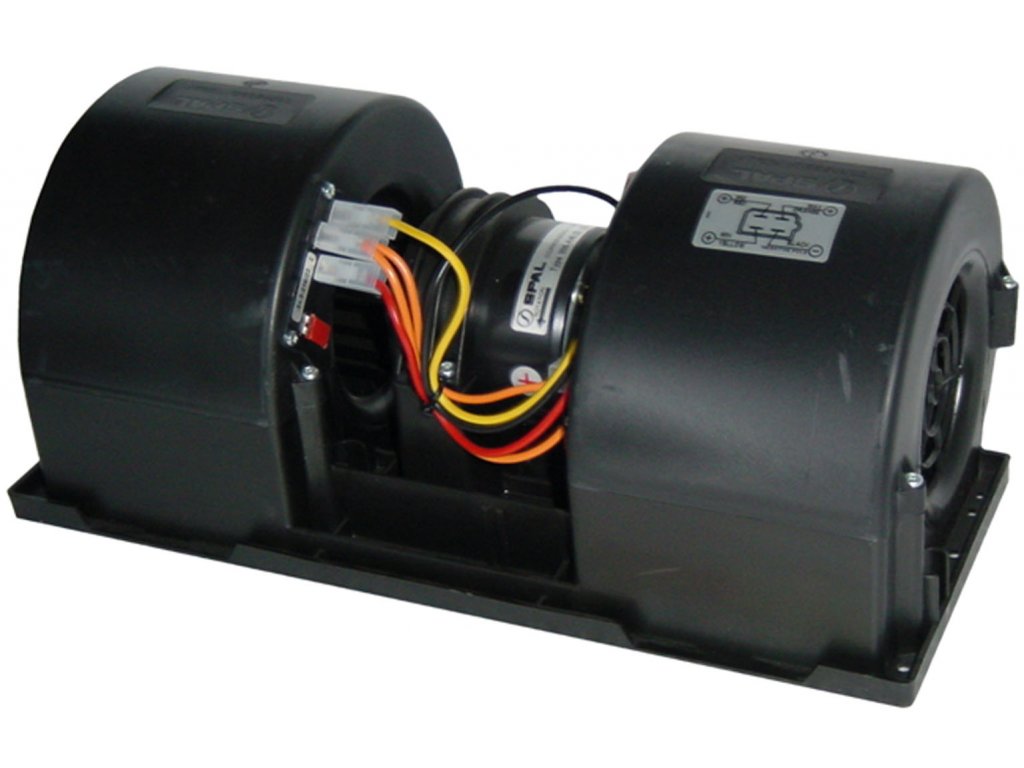

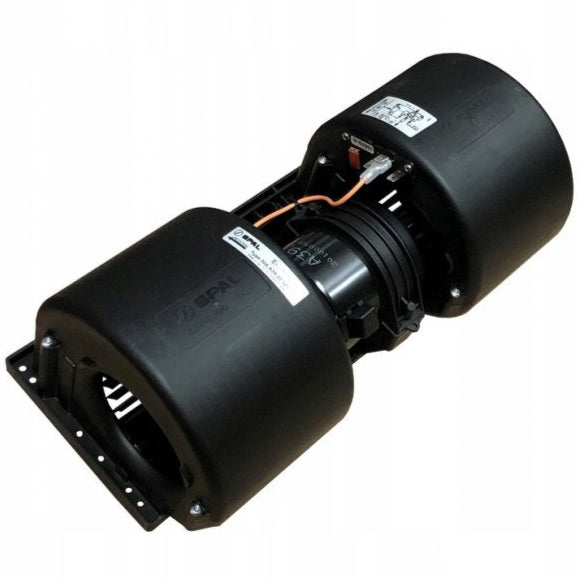

Blower Motor Fan For SPAL 12V evaporator radial 006-A39-22 3-SPEED / 006-A39-22 3VEL. (E1) 519703 -
Blower Motor Fan For SPAL 12V evaporator radial 006-A39-22 3-SPEED / 006-A39-22 3VEL. (E1) 519703 -
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Quantity
Couldn't load pickup availability
Performance chart
| Static pressure | Static pressure | Airflow | Current draw | Airflow | Static pressure |
|---|---|---|---|---|---|
| Pa | mm H₂0 | m³/h | A | CFM | in H₂0 |
| 0.0 | 0.0 | 1108.0 | 29.6 | 652.0 | 0.0 |
| 51.0 | 5.0 | 1072.0 | 28.9 | 631.0 | 0.2 |
| 99.0 | 10.0 | 1036.0 | 28.4 | 610.0 | 0.4 |
| 150.0 | 15.0 | 1002.0 | 28.0 | 590.0 | 0.6 |
| 199.0 | 20.0 | 965.0 | 27.4 | 568.0 | 0.8 |
| 249.0 | 25.0 | 929.0 | 26.8 | 547.0 | 1.0 |
| 298.0 | 30.0 | 890.0 | 26.2 | 524.0 | 1.2 |
| 349.0 | 36.0 | 847.0 | 25.4 | 498.0 | 1.4 |
| 396.0 | 40.0 | 802.0 | 24.5 | 472.0 | 1.6 |
| 446.0 | 46.0 | 758.0 | 23.6 | 446.0 | 1.8 |
| 500.0 | 51.0 | 704.0 | 22.5 | 414.0 | 2.0 |
| 548.0 | 56.0 | 652.0 | 21.3 | 384.0 | 2.2 |
| 599.0 | 61.0 | 562.0 | 19.1 | 331.0 | 2.4 |
| 646.0 | 66.0 | 497.0 | 17.8 | 292.0 | 2.6 |
| 698.0 | 71.0 | 384.0 | 15.3 | 226.0 | 2.8 |
| 752.0 | 77.0 | 298.0 | 13.5 | 175.0 | 3.0 |
| 809.0 | 83.0 | 211.0 | 12.6 | 124.0 | 3.2 |
| 845.0 | 86.0 | 157.0 | 12.0 | 92.0 | 3.4 |
| 901.0 | 92.0 | 90.0 | 11.3 | 53.0 | 3.6 |
| 942.0 | 96.0 | 33.0 | 10.8 | 20.0 | 3.8 |
| 970.0 | 99.0 | 0.0 | 10.5 | 0.0 | 3.9 |
