HEMENG COOLERS SYSTEM

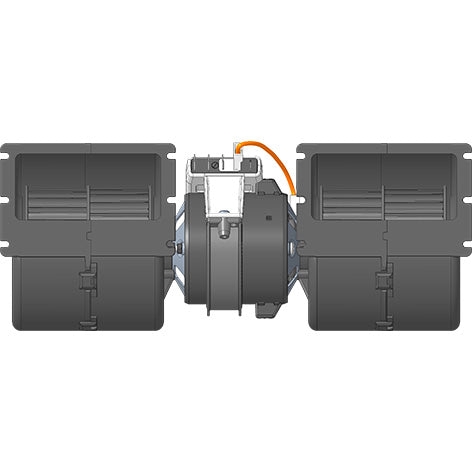

BLOWER ASSEMBLY For NEW SPAL 12V 008-A54-02 008-A39-02 RD-5-12143-0P
BLOWER ASSEMBLY For NEW SPAL 12V 008-A54-02 008-A39-02 RD-5-12143-0P
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Quantity
Couldn't load pickup availability
Performance chart
| Static pressure | Static pressure | Airflow | Current draw | Airflow | Static pressure |
|---|---|---|---|---|---|
| Pa | mm H₂0 | m³/h | A | CFM | in H₂0 |
| 0.0 | 0.0 | 823.0 | 25.0 | 425.0 | 0.0 |
| 49.0 | 5.0 | 796.0 | 24.4 | 468.0 | 0.2 |
| 103.0 | 11.0 | 763.0 | 23.4 | 449.0 | 0.4 |
| 149.0 | 15.0 | 737.0 | 22.9 | 434.0 | 0.6 |
| 203.0 | 21.0 | 710.0 | 22.3 | 418.0 | 0.8 |
| 250.0 | 26.0 | 684.0 | 21.7 | 403.0 | 1.0 |
| 298.0 | 30.0 | 663.0 | 21.2 | 390.0 | 1.2 |
| 350.0 | 36.0 | 630.0 | 20.4 | 371.0 | 1.4 |
| 397.0 | 40.0 | 600.0 | 19.6 | 353.0 | 1.6 |
| 447.0 | 46.0 | 568.0 | 18.9 | 334.0 | 1.8 |
| 499.0 | 51.0 | 528.0 | 18.0 | 311.0 | 2.0 |
| 557.0 | 57.0 | 489.0 | 17.3 | 288.0 | 2.2 |
| 603.0 | 61.0 | 437.0 | 16.0 | 257.0 | 2.4 |
| 647.0 | 66.0 | 377.0 | 15.0 | 222.0 | 2.6 |
| 700.0 | 71.0 | 256.0 | 12.3 | 150.0 | 2.8 |
| 760.0 | 78.0 | 161.0 | 10.3 | 95.0 | 3.1 |
| 809.0 | 83.0 | 65.0 | 8.5 | 38.0 | 3.2 |
| 854.0 | 87.0 | 0.0 | 8.1 | 0.0 | 3.4 |
