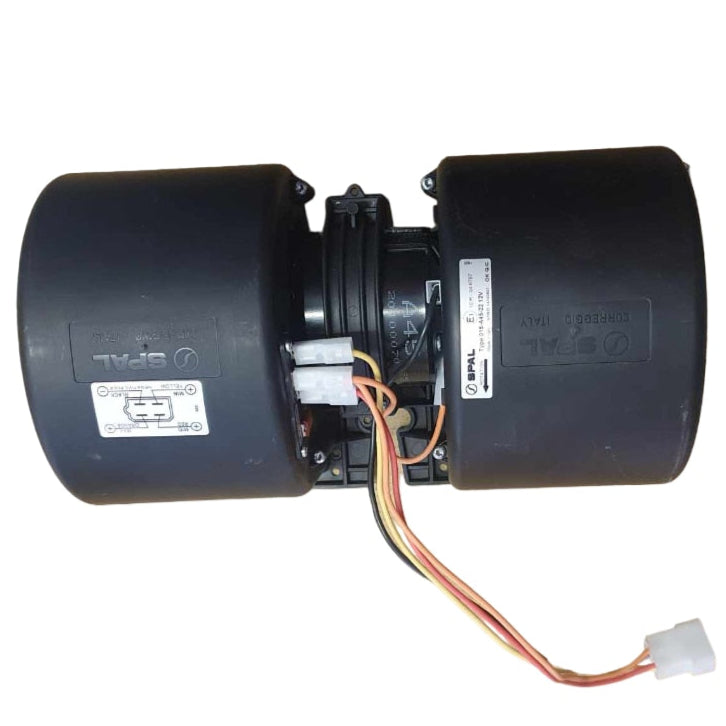

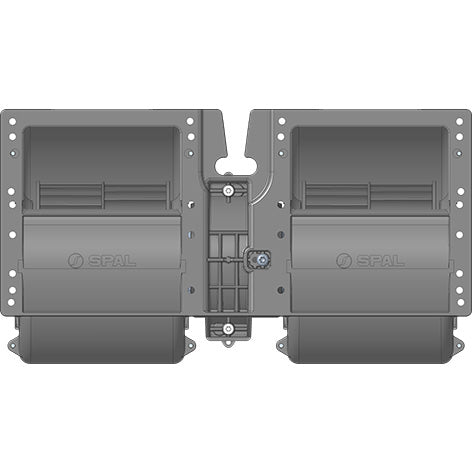

Auto Cooling Fan/Blower Motor For Spal 12V 015-A45-22 BL310 (1 Speeds)
Auto Cooling Fan/Blower Motor For Spal 12V 015-A45-22 BL310 (1 Speeds)
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Quantity
Couldn't load pickup availability
Performance chart
| Static pressure | Static pressure | Airflow | Current draw | Airflow | Static pressure |
|---|---|---|---|---|---|
| Pa | mm H₂0 | m³/h | A | CFM | in H₂0 |
| 0.0 | 0.0 | 913.0 | 19.8 | 537.0 | 0.0 |
| 50.0 | 5.0 | 878.0 | 19.4 | 517.0 | 0.2 |
| 100.0 | 101.0 | 838.0 | 18.7 | 493.0 | 0.4 |
| 149.0 | 15.0 | 803.0 | 18.2 | 473.0 | 0.6 |
| 200.0 | 20.0 | 764.0 | 17.7 | 450.0 | 0.8 |
| 248.0 | 25.0 | 722.0 | 17.1 | 425.0 | 1.0 |
| 298.0 | 30.0 | 680.0 | 16.5 | 401.0 | 1.2 |
| 348.0 | 36.0 | 634.0 | 15.9 | 373.0 | 1.4 |
| 397.0 | 41.0 | 569.0 | 14.7 | 335.0 | 1.6 |
| 451.0 | 46.0 | 486.0 | 13.4 | 286.0 | 1.8 |
| 496.0 | 51.0 | 385.0 | 11.7 | 227.0 | 2.0 |
| 552.0 | 56.0 | 284.0 | 10.2 | 167.0 | 2.2 |
| 601.0 | 61.0 | 216.0 | 9.4 | 127.0 | 2.4 |
| 650.0 | 66.0 | 156.0 | 9.0 | 92.0 | 2.6 |
| 704.0 | 72.0 | 89.0 | 8.7 | 52.0 | 2.8 |
| 741.0 | 76.0 | 20.0 | 8.3 | 12.0 | 3.0 |
| 753.0 | 77.0 | 0.0 | 8.4 | 0.0 | 3.0 |
