HEMENG COOLERS SYSTEM

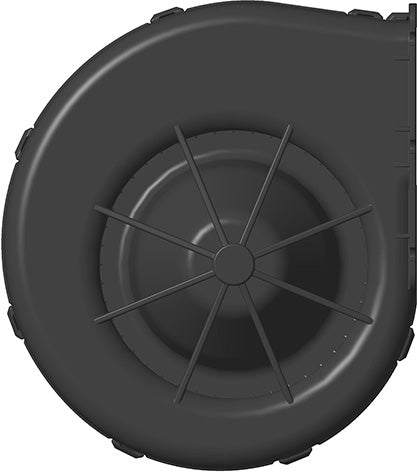

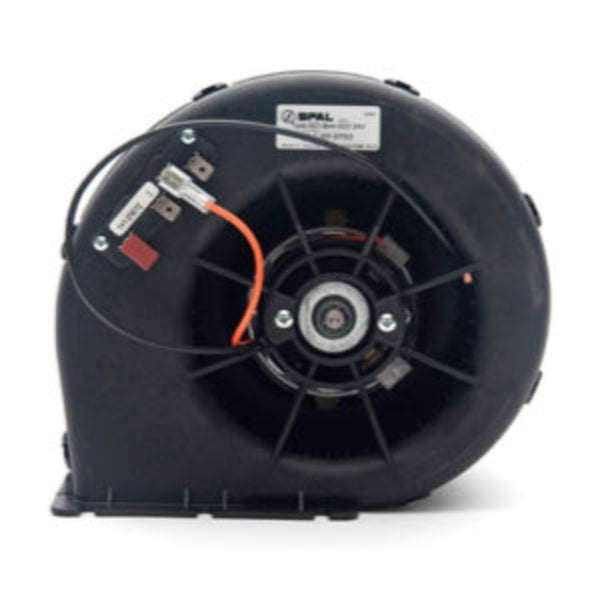

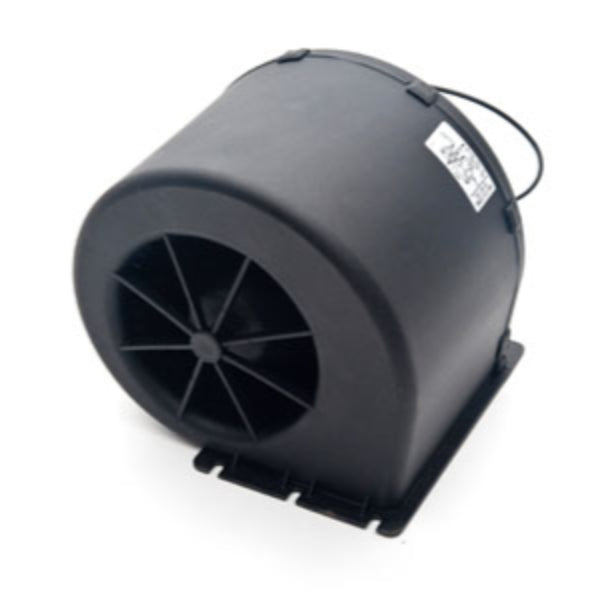

175 mm for Spal Single Blower motor fan 24V - 007-B44-32D
175 mm for Spal Single Blower motor fan 24V - 007-B44-32D
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Quantity
Couldn't load pickup availability
Performance chart
| Static pressure | Static pressure | Airflow | Current draw | Airflow | Static pressure |
|---|---|---|---|---|---|
| Pa | mm H₂0 | m³/h | A | CFM | in H₂0 |
| 0.0 | 0.0 | 716.0 | 5.6 | 421.0 | 0.0 |
| 48.0 | 5.0 | 676.0 | 5.3 | 398.0 | 0.2 |
| 99.0 | 10.0 | 631.0 | 5.0 | 372.0 | 0.4 |
| 148.0 | 15.0 | 585.0 | 4.8 | 344.0 | 0.6 |
| 199.0 | 20.0 | 536.0 | 4.5 | 315.0 | 0.8 |
| 247.0 | 25.0 | 477.0 | 4.2 | 281.0 | 1.0 |
| 298.0 | 30.0 | 405.0 | 3.8 | 239.0 | 1.2 |
| 347.0 | 35.0 | 279.0 | 3.1 | 164.0 | 1.4 |
| 396.0 | 40.0 | 106.0 | 2.4 | 62.0 | 1.6 |
| 421.0 | 43.0 | 0.0 | 2.1 | 0.0 | 1.7 |
