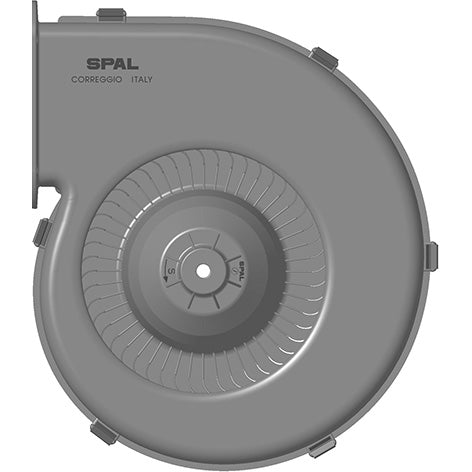

130 mm Spal Single Blower Motor 12V - 004-A41-28S (LH)
130 mm Spal Single Blower Motor 12V - 004-A41-28S (LH)
Regular price
$50.00 USD
Regular price
Sale price
$50.00 USD
Quantity
Couldn't load pickup availability
Performance chart
| Static pressure | Static pressure | Airflow | Current draw | Airflow | Static pressure |
|---|---|---|---|---|---|
| Pa | mm H₂0 | m³/h | A | CFM | in H₂0 |
| 0.0 | 0.0 | 777.0 | 20.6 | 457.0 | 0.0 |
| 50.0 | 5.0 | 741.0 | 19.7 | 436.0 | 0.2 |
| 100.0 | 10.0 | 709.0 | 19.0 | 417.0 | 0.4 |
| 151.0 | 15.0 | 688.0 | 18.7 | 405.0 | 0.6 |
| 200.0 | 20.0 | 655.0 | 18.0 | 385.0 | 0.8 |
| 248.0 | 25.0 | 622.0 | 17.3 | 366.0 | 1.0 |
| 299.0 | 30.0 | 591.0 | 16.8 | 348.0 | 1.2 |
| 347.0 | 35.0 | 554.0 | 16.0 | 326.0 | 1.4 |
| 395.0 | 40.0 | 521.0 | 15.4 | 307.0 | 1.6 |
| 449.0 | 46.0 | 481.0 | 14.9 | 283.0 | 1.8 |
| 502.0 | 51.0 | 427.0 | 13.9 | 252.0 | 2.0 |
| 544.0 | 56.0 | 372.0 | 12.9 | 219.0 | 2.2 |
| 598.0 | 61.0 | 298.0 | 11.4 | 175.0 | 2.4 |
| 644.0 | 66.0 | 196.0 | 10.1 | 115.0 | 2.6 |
| 701.0 | 72.0 | 97.0 | 8.6 | 57.0 | 2.8 |
| 743.0 | 76.0 | 53.0 | 8.3 | 31.0 | 3.0 |
| 771.0 | 79.0 | 0.0 | 8.1 | 0.0 | 3.1 |
