HEMENG COOLERS SYSTEM

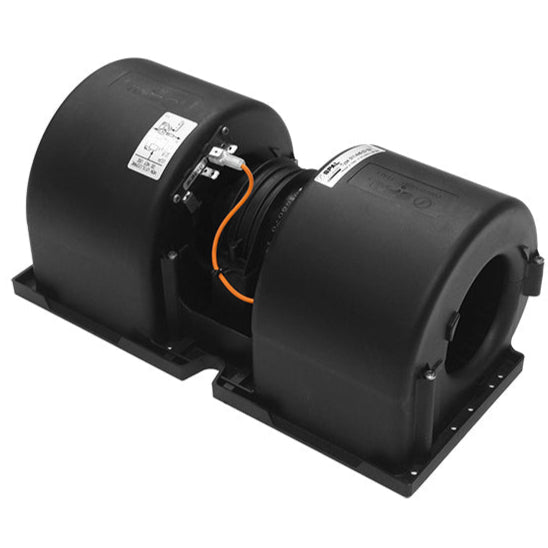

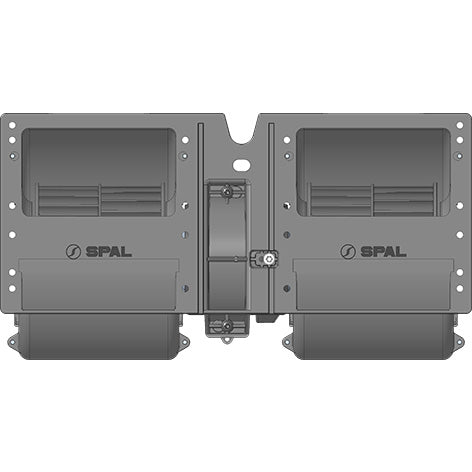

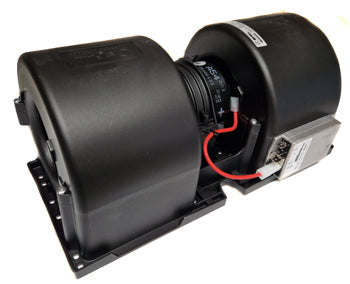

011-A54-22 30004516D For SPAL 511 cfm Double Blower Motor 011-A54/2C/I-22 (12v / 3 speeds)
011-A54-22 30004516D For SPAL 511 cfm Double Blower Motor 011-A54/2C/I-22 (12v / 3 speeds)
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Quantity
Couldn't load pickup availability
Performance chart
| Static pressure | Static pressure | Airflow | Current draw | Airflow | Static pressure |
|---|---|---|---|---|---|
| Pa | mm H₂0 | m³/h | A | CFM | in H₂0 |
| 0.0 | 0.0 | 1162.0 | 39.4 | 684.0 | 0.0 |
| 51.0 | 5.0 | 1131.0 | 39.0 | 666.0 | 0.2 |
| 99.0 | 10.0 | 1106.0 | 38.5 | 651.0 | 0.4 |
| 149.0 | 15.0 | 1075.0 | 37.7 | 633.0 | 0.6 |
| 199.0 | 20.0 | 1046.0 | 37.1 | 616.0 | 0.8 |
| 248.0 | 25.0 | 1016.0 | 36.6 | 598.0 | 1.0 |
| 298.0 | 30.0 | 987.0 | 35.8 | 581.0 | 1.2 |
| 352.0 | 36.0 | 953.0 | 35.1 | 561.0 | 1.4 |
| 397.0 | 41.0 | 920.0 | 34.0 | 542.0 | 1.6 |
| 446.0 | 46.0 | 888.0 | 33.4 | 523.0 | 1.8 |
| 495.0 | 51.0 | 849.0 | 32.3 | 499.0 | 2.0 |
| 548.0 | 56.0 | 808.0 | 31.1 | 476.0 | 2.2 |
| 603.0 | 62.0 | 764.0 | 29.9 | 450.0 | 2.4 |
| 652.0 | 67.0 | 717.0 | 28.7 | 422.0 | 2.6 |
| 699.0 | 71.0 | 663.0 | 27.2 | 390.0 | 2.8 |
| 743.0 | 76.0 | 565.0 | 25.0 | 332.0 | 3.0 |
| 805.0 | 82.0 | 449.0 | 22.3 | 264.0 | 3.2 |
| 850.0 | 87.0 | 394.0 | 20.5 | 232.0 | 3.4 |
| 897.0 | 92.0 | 341.0 | 18.9 | 201.0 | 3.6 |
| 954.0 | 97.0 | 275.0 | 17.4 | 162.0 | 3.8 |
| 1007.0 | 103.0 | 217.0 | 16.6 | 128.0 | 4.0 |
| 1044.0 | 107.0 | 162.0 | 15.7 | 95.0 | 4.2 |
| 1098.0 | 112.0 | 102.0 | 15.1 | 60.0 | 4.4 |
| 1145.0 | 117.0 | 47.0 | 14.7 | 28.0 | 4.6 |
| 1183.0 | 121.0 | 0.0 | 14.6 | 0.0 | 4.8 |
