HEMENG COOLERS SYSTEM

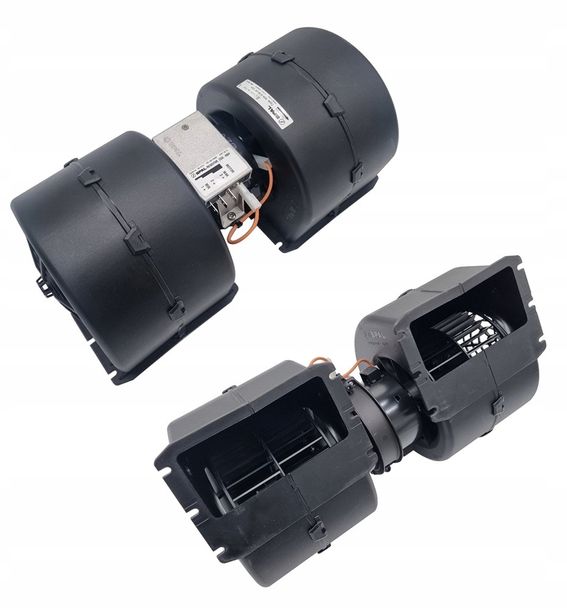

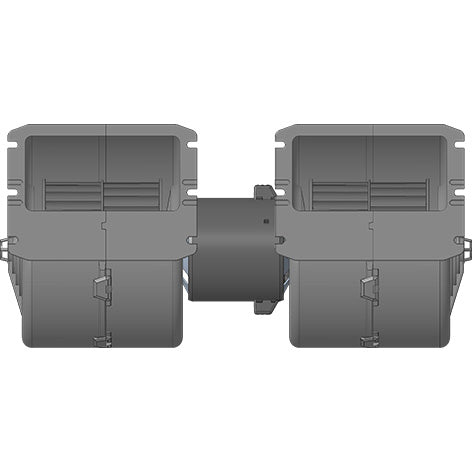

009-A39-22 For SPAL 696 cfm Double Blower Motor 009-A39/2C-22 (12v) (Single Speed)
009-A39-22 For SPAL 696 cfm Double Blower Motor 009-A39/2C-22 (12v) (Single Speed)
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Quantity
Couldn't load pickup availability
Performance chart
| Static pressure | Static pressure | Airflow | Current draw | Airflow | Static pressure |
|---|---|---|---|---|---|
| Pa | mm H₂0 | m³/h | A | CFM | in H₂0 |
| 0.0 | 0.0 | 1110.0 | 28.2 | 653.0 | 0.0 |
| 48.0 | 5.0 | 1071.0 | 27.5 | 630.0 | 0.2 |
| 99.0 | 10.0 | 1031.0 | 26.8 | 607.0 | 0.4 |
| 148.0 | 15.0 | 994.0 | 26.1 | 585.0 | 0.6 |
| 200.0 | 20.0 | 952.0 | 25.3 | 560.0 | 0.8 |
| 250.0 | 26.0 | 911.0 | 24.5 | 536.0 | 1.0 |
| 299.0 | 30.0 | 874.0 | 23.9 | 514.0 | 1.2 |
| 349.0 | 36.0 | 830.0 | 23.1 | 488.0 | 1.4 |
| 397.0 | 41.0 | 784.0 | 22.4 | 462.0 | 1.6 |
| 450.0 | 46.0 | 737.0 | 21.6 | 434.0 | 1.8 |
| 497.0 | 51.0 | 682.0 | 20.4 | 401.0 | 2.0 |
| 552.0 | 56.0 | 609.0 | 19.2 | 359.0 | 2.2 |
| 601.0 | 61.0 | 528.0 | 17.4 | 311.0 | 2.4 |
| 643.0 | 66.0 | 289.0 | 15.7 | 229.0 | 2.6 |
| 700.0 | 71.0 | 226.0 | 13.9 | 133.0 | 2.8 |
| 752.0 | 77.0 | 149.0 | 12.9 | 88.0 | 3.0 |
| 799.0 | 82.0 | 96.0 | 12.0 | 50.0 | 3.2 |
| 851.0 | 87.0 | 15.0 | 11.7 | 9.0 | 3.4 |
| 860.0 | 88.0 | 0.0 | 11.5 | 0.0 | 3.5 |
