HEMENG COOLERS SYSTEM

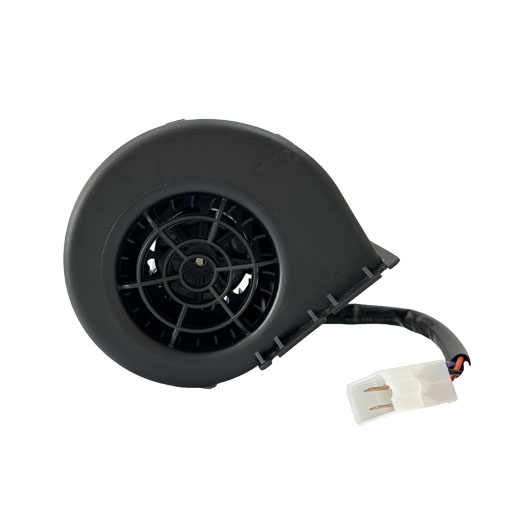

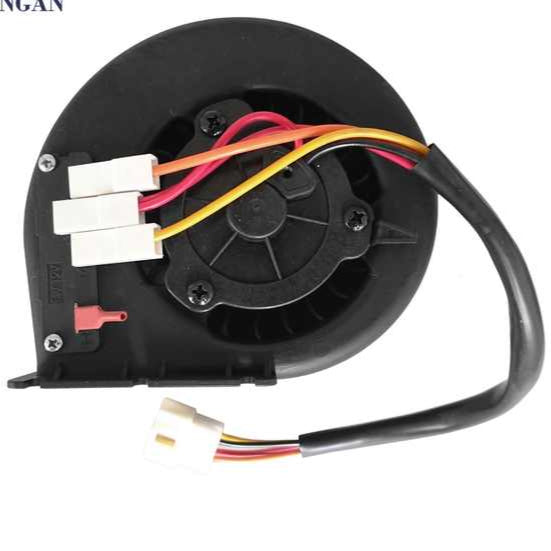

008-B100-93D For Spal 24 Volt 3 Speed Bus Blower Motor Assembly 30003115 BM3925 008-B100/HD/IE-93D
008-B100-93D For Spal 24 Volt 3 Speed Bus Blower Motor Assembly 30003115 BM3925 008-B100/HD/IE-93D
Regular price
$50.00 USD
Regular price
Sale price
$50.00 USD
Unit price
per
Couldn't load pickup availability
Performance chart
| Static pressure | Static pressure | Airflow | Current draw | Airflow | Static pressure |
|---|---|---|---|---|---|
| Pa | mm H₂0 | m³/h | A | CFM | in H₂0 |
| 0.0 | 0.0 | 234.0 | 2.1 | 138.0 | 0.0 |
| 24.0 | 2.0 | 223.0 | 2.1 | 131.0 | 0.1 |
| 49.0 | 5.0 | 213.0 | 2.0 | 125.0 | 0.2 |
| 74.0 | 8.0 | 208.0 | 2.0 | 123.0 | 0.3 |
| 99.0 | 10.0 | 203.0 | 2.0 | 119.0 | 0.4 |
| 124.0 | 13.0 | 194.0 | 1.9 | 114.0 | 0.5 |
| 149.0 | 15.0 | 185.0 | 1.9 | 109.0 | 0.6 |
| 174.0 | 18.0 | 175.0 | 1.9 | 103.0 | 0.7 |
| 199.0 | 20.0 | 165.0 | 1.9 | 97.0 | 0.8 |
| 225.0 | 23.0 | 154.0 | 1.8 | 91.0 | 0.9 |
| 250.0 | 25.0 | 148.0 | 1.8 | 87.0 | 1.0 |
| 277.0 | 28.0 | 136.0 | 1.7 | 80.0 | 1.1 |
| 299.0 | 30.0 | 117.0 | 1.6 | 69.0 | 1.2 |
| 324.0 | 33.0 | 89.0 | 1.5 | 52.0 | 1.3 |
| 349.0 | 36.0 | 76.0 | 1.5 | 45.0 | 1.4 |
| 373.0 | 38.0 | 62.0 | 1.4 | 36.0 | 1.5 |
| 403.0 | 41.0 | 46.0 | 1.3 | 27.0 | 1.6 |
| 420.0 | 43.0 | 22.0 | 1.2 | 13.0 | 1.7 |
| 442.0 | 45.0 | 0.0 | 1.2 | 0.0 | 1.8 |
