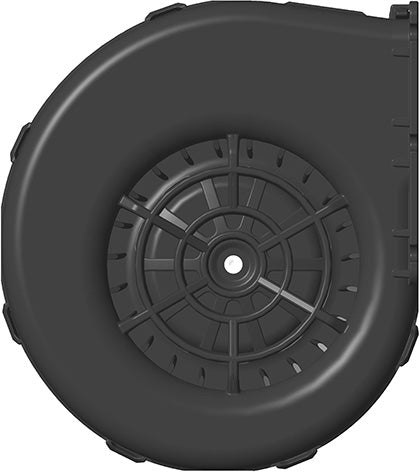

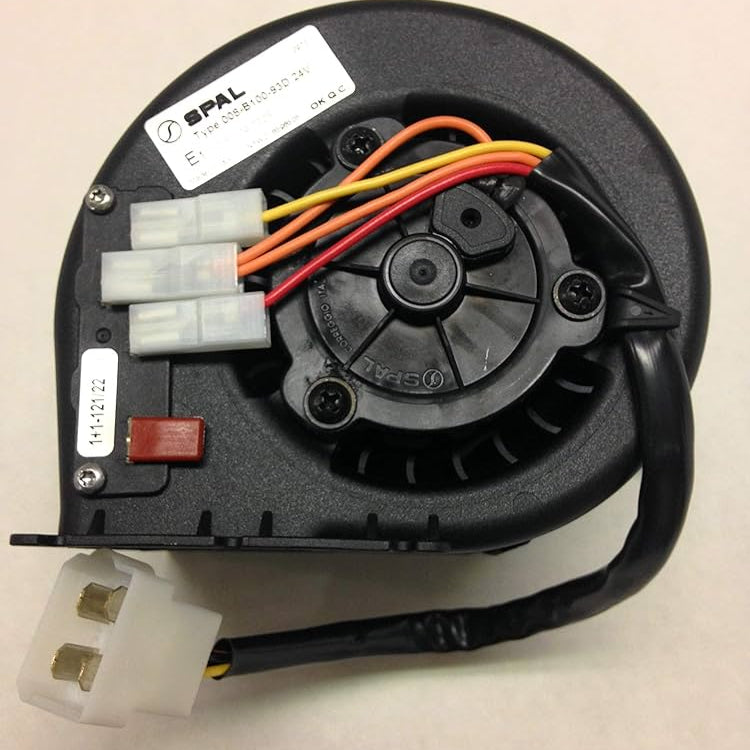

008-B100-93D For Spal 24 Volt 3 Speed Blower Assembly 30003115 BM3925
008-B100-93D For Spal 24 Volt 3 Speed Blower Assembly 30003115 BM3925
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Quantity
Couldn't load pickup availability
Performance chart
| Static pressure | Static pressure | Airflow | Current draw | Airflow | Static pressure |
|---|---|---|---|---|---|
| Pa | mm H₂0 | m³/h | A | CFM | in H₂0 |
| 0.0 | 0.0 | 256.0 | 2.5 | 151.0 | 0.0 |
| 24.0 | 2.0 | 245.0 | 2.4 | 144.0 | 0.1 |
| 50.0 | 5.0 | 235.0 | 2.3 | 138.0 | 0.2 |
| 77.0 | 8.0 | 226.0 | 2.3 | 133.0 | 0.3 |
| 99.0 | 10.0 | 219.0 | 2.2 | 129.0 | 0.4 |
| 125.0 | 13.0 | 210.0 | 2.2 | 124.0 | 0.5 |
| 150.0 | 15.0 | 202.0 | 2.1 | 119.0 | 0.6 |
| 175.0 | 18.0 | 194.0 | 2.1 | 114.0 | 0.7 |
| 200.0 | 20.0 | 186.0 | 2.1 | 109.0 | 0.8 |
| 224.0 | 23.0 | 177.0 | 2.0 | 104.0 | 0.9 |
| 249.0 | 25.0 | 168.0 | 2.0 | 99.0 | 1.0 |
| 274.0 | 28.0 | 155.0 | 2.0 | 92.0 | 1.1 |
| 300.0 | 31.0 | 135.0 | 1.9 | 80.0 | 1.2 |
| 326.0 | 33.0 | 118.0 | 1.8 | 70.0 | 1.3 |
| 352.0 | 36.0 | 102.0 | 1.7 | 60.0 | 1.4 |
| 375.0 | 38.0 | 84.0 | 1.7 | 49.0 | 1.5 |
| 401.0 | 41.0 | 71.0 | 1.6 | 42.0 | 1.6 |
| 424.0 | 43.0 | 63.0 | 1.5 | 37.0 | 1.7 |
| 448.0 | 46.0 | 54.0 | 1.5 | 32.0 | 1.8 |
| 475.0 | 48.0 | 34.0 | 1.4 | 20.0 | 1.9 |
| 499.0 | 51.0 | 16.0 | 1.4 | 9.0 | 2.0 |
| 516.0 | 53.0 | 0.0 | 1.4 | 0.0 | 2.1 |
