HEMENG COOLERS SYSTEM

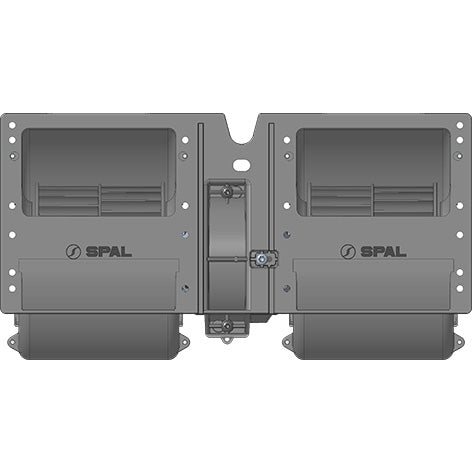

011-B40-22 24V Spal Motor Blower Double wheel
011-B40-22 24V Spal Motor Blower Double wheel
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Quantity
Couldn't load pickup availability
Performance chart
| Static pressure | Static pressure | Airflow | Current draw | Airflow | Static pressure |
|---|---|---|---|---|---|
| Pa | mm H₂0 | m³/h | A | CFM | in H₂0 |
| 0.0 | 0.0 | 972.0 | 11.2 | 572.0 | 0.0 |
| 48.0 | 5.0 | 936.0 | 10.9 | 551.0 | 0.2 |
| 100.0 | 10.0 | 896.0 | 10.6 | 527.0 | 0.4 |
| 148.0 | 15.0 | 858.0 | 10.3 | 505.0 | 0.6 |
| 198.0 | 20.0 | 817.0 | 10.0 | 481.0 | 0.8 |
| 249.0 | 25.0 | 772.0 | 9.6 | 454.0 | 1.0 |
| 298.0 | 30.0 | 730.0 | 9.3 | 430.0 | 1.2 |
| 347.0 | 35.0 | 674.0 | 8.8 | 397.0 | 1.4 |
| 396.0 | 40.0 | 624.0 | 8.5 | 368.0 | 1.6 |
| 447.0 | 46.0 | 552.0 | 7.9 | 325.0 | 1.8 |
| 499.0 | 51.0 | 387.0 | 6.7 | 228.0 | 2.0 |
| 548.0 | 56.0 | 321.0 | 6.1 | 189.0 | 2.2 |
| 601.0 | 61.0 | 221.0 | 5.2 | 130.0 | 2.4 |
| 654.0 | 67.0 | 140.0 | 4.9 | 82.0 | 2.6 |
| 696.0 | 71.0 | 68.0 | 4.6 | 40.0 | 2.8 |
| 738.0 | 75.0 | 0.0 | 4.5 | 0.0 | 3.0 |
